Perfectly Sync Holiday Lights and Fireworks

Are you interested in incorporating synchronized lights into your fireworks show or vice-versa? If yes, Light-O-Rama has a formal integration with the IGNITE system at the Pro License Level so you can perfectly time the systems to operate together.

You can use the following simple steps to integrate IGNITE and Light-O-Rama together. You can also learn more about the IGNITE Firing System and the integration with Light-O-Rama from the IGNITE website.

Learn more about IGNITE
Ignite lam header

Step 1:

Design Your Fireworks Show

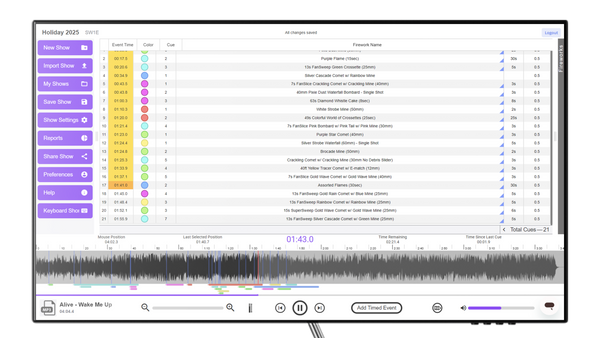

Design your fireworks show using the online IGNITE Show Designer or GLOW 3D from selected retailers to design your fireworks show and generate a 4-digit show code.

Ignite lam 1
Ignite lam 2

Step 2:

Design Your Light Show

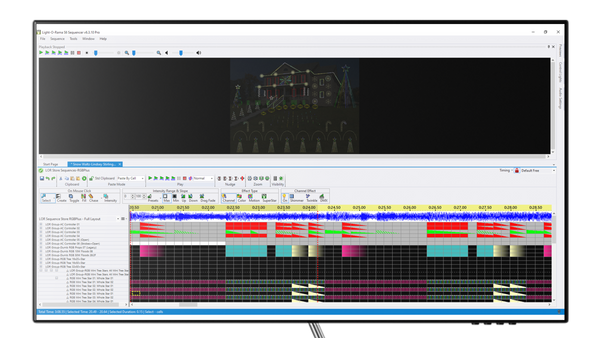

Design your Light-O-Rama light show using the Show Time Sequencing Suite, version 6.3.16 Pro or above.

Start by creating your Preview (layout) in the Light-O-Rama Sequencer and draw all of the non-firework elements in your show.

When designing your musical sequence, select the same .mp3 audio file you used with IGNITE.

Step 3:

Add SMPTE to your audio using IGNITE Show Designer

From IGNITE Show Designer, go to the Audio Studio by clicking the MP3 icon from the lower left of IGNITE Show Designer. Then, select to add SMPTE to your currently selected soundtrack.

Ignite lam 3
Ignite lam 4

Step 4:

Split Your Mobile Audio Output

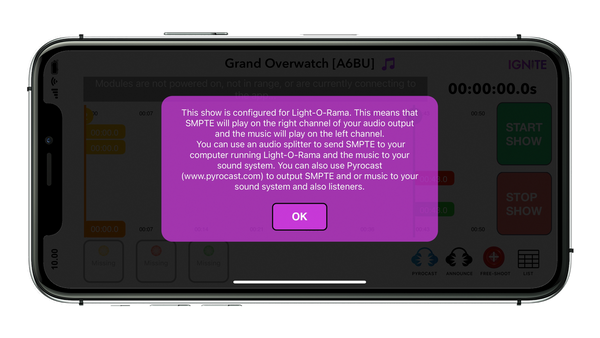

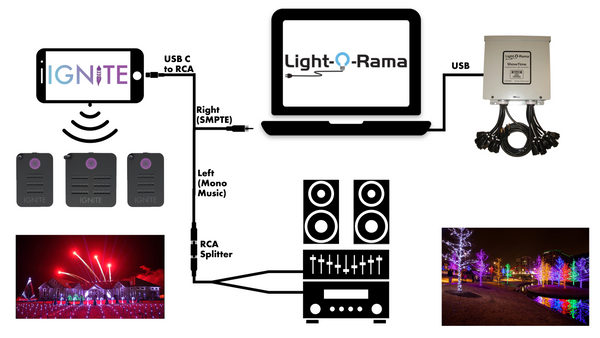

The IGNITE app will play music through the left channel and SMPTE timecode on the right channel. You will need to use an audio output splitter to connect the music to your sound system and SMPTE to your computer running Light-O-Rama.

For newer iPhones and Androids, you can use a type C to RCA  audio splitter cable. For older iPhones, you can use a lightning cable to RCA audio splitter cable. You can then use varying RCA adapters such as a mono RCA to 3mm cables to connect to your computer and / or sound system.*

Step 5:

Configure LOR for SMPTE

In the LOR Control Panel, v6.3.16+, enable Time Code Sync under Settings>Integration (Pro license level).

After enabling, click on the "Play Shows" tab. If you are already in a playback mode, click "Disable Player" in the upper right, then select "Sync Follower."

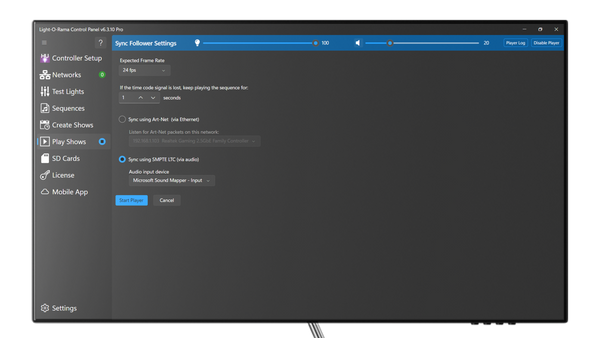

In "Sync Follower Settings":
1. Set the expected frame rate to 30 fps.
2. Set "If the time code signal is lost..." to 0.
3. Set option to "Sync using SMPTE LTC (via audio)"
4. Select the audio input device that will receive the SMPTE LTC signal. (Typically the microphone input.)


Ignite lam 5
Ignite lam 6 882b9b31 11e6 44ef b44b 5e2955e48c9e

Step 6:

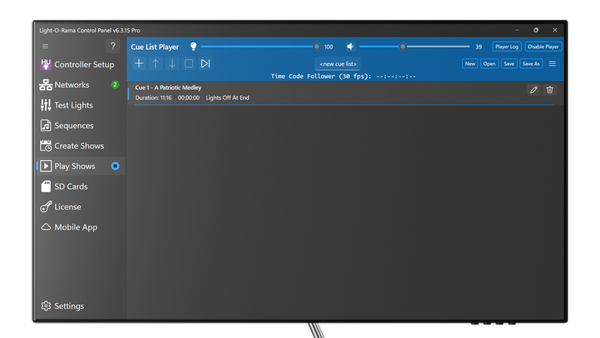

Create Your LOR Cue List

1. if the cue list has sequences from a different show, click the "New" button
2. Click the "+" button at the top left and select the sequence you created in step 2
3. Click the pencil icon at the right side of the new cue list entry. Set the time code to "00:00". Then click the "Update" button at the bottom.
4. The cue list entry should show the duration of the sequence, and then the "00:00:00" time code.

The lights should start playing as soon as the time code is received from Ignite. No music will play from the LOR computer (audio is handled from IGNITE, shown in Step 4).

Step 7:

Fire Your Fireworks Show with IGNITE

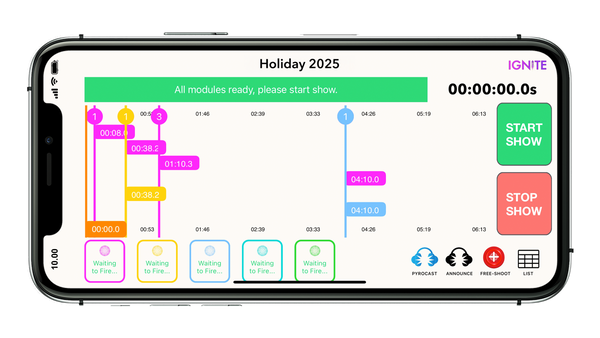

Use IGNITE to start your show by going to the Shows section of the IGNITE app and selecting to fire your show. When the show fires, SMPTE will output from the right channel of your mobile device and into Light-O-Rama to start the show in perfect sync.

We recommend performing "dry runs" with IGNITE to simulate your show until you feel comfortable with the integration, audio, and module firing. For questions about IGNITE, contact help@ignitefiringsystems.com.


Ignite lam 7
Thumbnail

*Connecting Cables

If using a PC with a combined mic/headphone jack (almost all laptops do, some desktops have separate jacks), you will need a cable like the picture shown to split the mic and headphone.

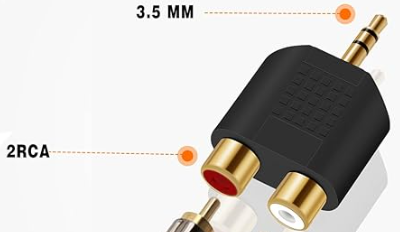

Then plug a "3.5mm Stereo Male to Dual RCA" adapter into the mic input. The SMPTE signal can be plugged into either RCA jack.

For help with microphone settings, click here.
