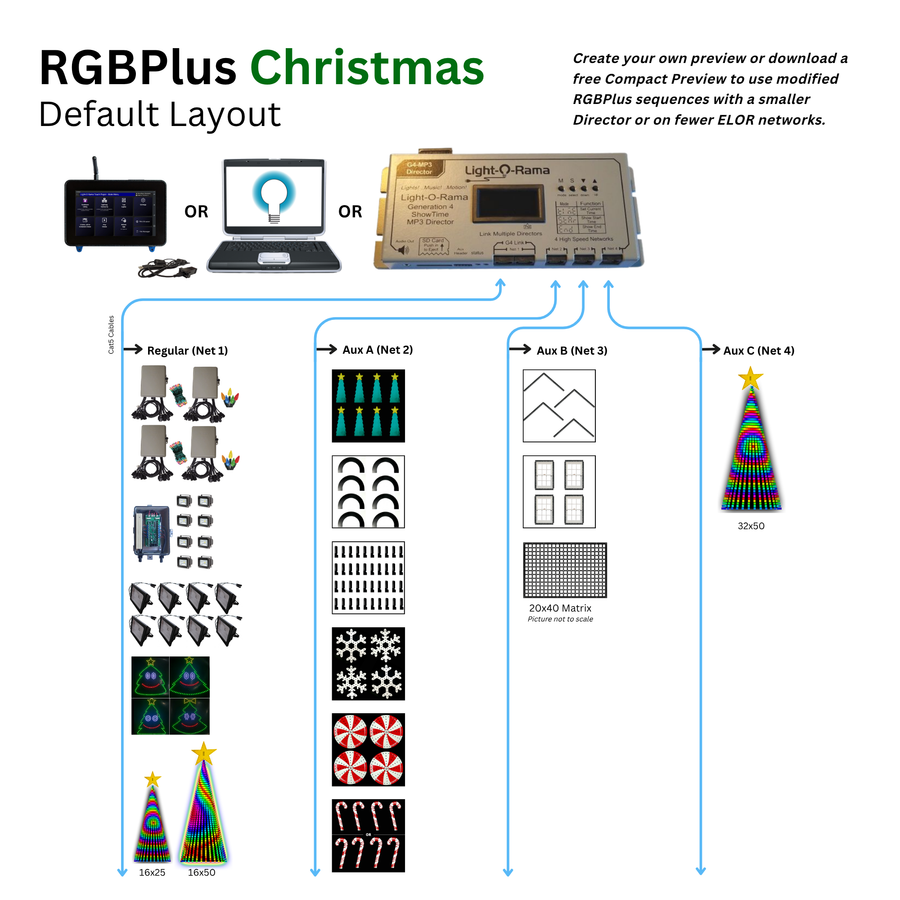

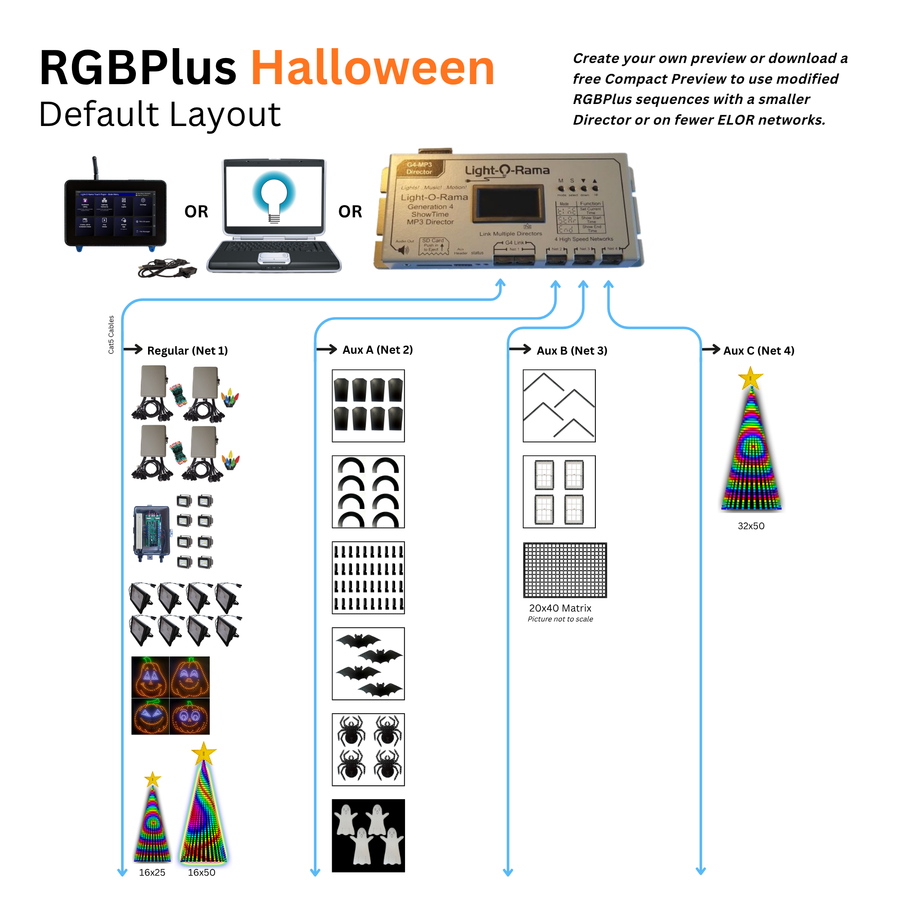

RGBPlus Network Overview

RGBPlus sequences use the following networks by default. Props do not need to be connected in numerical order. Create your own custom preview to rearrange these props on different networks!

Rgbplus product page pic
Rgbplushalloween product page pic

Packages Included in RGBPlus

Regular Network (Net 1) = Traditional + Floods + Singing Faces + 1300 Smart Pixels

{68 AC Channels, 32 Dumb Pixels, 32 Dumb Singing Face "Pixels," 1300 Smart Pixels ~~Total Equivalent To~~ "1386 Smart Pixels"}

  • Four 16 channel AC units
  • 4 channels of strobes (AC)
  • 8 10-Watt Floods
  • 8 50-Watt Floods
  • Four Singing Faces (Trees or Pumpkins)
  • Pixel Tree (16x25=400)
  • 18" Star Tree Topper (1x50)
  • Pixel Tree (16x50=800)
  • 32" Star Topper (1x50) for trees with strands ending at the TOP

Aux A (Net 2) = 1984 Smart Pixels
  • Mini Trees with Stars (8x100) - Christmas Layout Only
  • Snowflakes (4x48) - Christmas Layout Only
  • Spinners( (4x100)  - Christmas Layout Only
  • Candy Canes (4x48)  - Christmas Layout Only
  • Mini Arches (8x25)
  • Pixel Stakes (40x5)
  • RIP Tombstones (8x100) - Halloween Layout Only
  • Bats (4x50) - Halloween Layout Only
  • Spiders (4x100) - Halloween Layout Only
  • Ghosts (4x100) - Halloween Layout Only

Aux B (Net 3) = 1600 Smart Pixels
  • Roofline Segments (4x100)
  • Frames (4x100)
  • Matrix (20x40=800) {The following 8 Unit IDs are left open for customized Matrix expansion}

Aux C (Net 4) = 1650 Smart Pixels
  • Pixel Tree (32x50 folded = 1600)
  • 32" Star Topper (1x50) {Separate Pixie2 Controller REQUIRED}
× DIP switch settings

RGB Prop Controller Setup

Unit ID and network settings for each Pixie controller in the RGBPlus layout.

AC Props
Included prop Unit ID range Network
(Computer / Director)		 DIP switch settings (click to enlarge)
16 Channel AC Controller 16 Channel AC Controller
01
 Regular / Net 1 Preset to Unit ID 01 by default
No additional configuration necessary
16 Channel AC Controller 16 Channel AC Controller
02
 Regular / Net 1 Set Unit ID via LOR Control Panel
Watch Video →
16 Channel AC Controller 16 Channel AC Controller
03
 Regular / Net 1 Set Unit ID via LOR Control Panel
Watch Video →
16 Channel AC Controller 16 Channel AC Controller
04
 Regular / Net 1 Set Unit ID via LOR Control Panel
Watch Video →
10 Watt Flood Light Package 10W Flood Lights
08
 Regular / Net 1 DIP 08
RGB Props
Included prop Unit ID range Network
(Computer / Director)		 DIP switch settings (click to enlarge)
16x25 Smart RGB Mega Tree 16×25 Smart RGB Mega Tree
40-47
 Regular / Net 1 DIP 40
16x50 Smart RGB Mega Tree 16×50 Smart RGB Mega Tree
70-7F
 Regular / Net 1 DIP 70
32x50 Smart RGB Mega Tree 32×50 Smart RGB Mega Tree
70-7F
 Aux C / Net 4 DIP 70
Star Topper for 16x25 Tree Star Topper for 16×25 RGB Tree
47
circuits 151–300
 Regular / Net 1 Connects to 16×25 Tree's controller
Star Topper for 16x50 Tree Star Topper for 16×50 RGB Tree
7F
circuits 151–300
 Regular / Net 1 Connects to 16×50 Tree's controller
Star Topper for 32x50 Tree Star Topper for 32×50 RGB Tree
80
 Aux C / Net 4 DIP 80
20x40 Smart RGB Matrix 20×40 Smart RGB Matrix
90-97
 Aux B / Net 3 DIP 90
4 Smart RGB Roofline Segments 4 Smart RGB Roofline Segments
82-85
 Aux B / Net 3 DIP 82
4 Smart RGB Window Frames 4 Smart RGB Window Frames
86-89
 Aux B / Net 3 DIP 86
4 Smart RGB Snowflakes 4 Smart RGB Snowflakes
19-1C
 Aux A / Net 2 DIP 19
4 Smart RGB Spinners 4 Smart RGB Spinners
1D-20
 Aux A / Net 2 DIP 1D
4 Smart RGB Candy Canes 4 Smart RGB Candy Canes
21-24
 Aux A / Net 2 DIP 21
40 Smart RGB Pixel Stakes 40 Smart RGB Pixel Stakes
15-19
 Aux A / Net 2 DIP 15
8 Smart RGB Mini Arches 8 Smart RGB Mini Arches
11-14
 Aux A / Net 2 DIP 11
8 Smart RGB Mini Trees 8 Smart RGB Mini Trees
09-10
Spanning 0A-0F
 Aux A / Net 2 DIP 09
MegaPack – RGB Mini Trees, Arches, and Pixel Stakes MegaPack — RGB Mini Trees, Arches, and Pixel Stakes
09-19
Spanning 0A-0F
 Aux A / Net 2 DIP 09
MegaPack – RGB Snowflakes and Spinners MegaPack — RGB Snowflakes and Spinners
19-20
Spanning 1A-1F
 Aux A / Net 2 DIP 19

Halloween Variants

These props use the same unit IDs and network settings as their Christmas equivalents above.

Included prop Unit ID range Network (Computer / Director) DIP switch settings (click to enlarge)
4 Smart RGB Bats 4 Smart RGB Bats
19-1C
 Aux A / Net 2 DIP 19
4 Smart RGB Spiders 4 Smart RGB Spiders
1D-20
 Aux A / Net 2 DIP 1D
4 Smart RGB Ghosts 4 Smart RGB Ghosts
21-24
 Aux A / Net 2 DIP 21
8 Smart RGB Tombstones 8 Smart RGB Tombstones
09-10
Spanning 0A-0F
 Aux A / Net 2 DIP 09
MegaPack – RGB Tombstones, Arches, and Pixel Stakes MegaPack — RGB Tombstones, Arches, and Pixel Stakes
09-19
Spanning 0A-0F
 Aux A / Net 2 DIP 09
MegaPack – RGB Bats and Spiders MegaPack — RGB Bats and Spiders
19-20
Spanning 1A-1F
 Aux A / Net 2 DIP 19

RGBPlus and CPC Package FAQs

Why Aren't My Lights Working?

1. Make sure you are using RGBPlus sequences. Traditional and Deluxe Layout sequences don't have effects for 90% of our CPC Packages.

2. Ensure you set the DIP switches to match your directions. Misplaced them? Scroll down on this page for instructions.

3. Each package must connect to the right network. Follow your printed instructions, or scroll down on this page.

RGBPlus vs Deluxe vs Traditional Layout?
  • All Layouts include effects for 4 Traditional controllers, 10W floods, and 50W floods.
  • The RGBPlus Layout additionally includes effects for all CPC Packages.
  • The Deluxe Layout only includes smart pixel effects for the CPC 16x25 tree, CPC 16x50 tree, and Singing Faces set to V1 legacy mode.
  • The Traditional Layout does not include any CPC Package effects

Mini Director, N2-G4, or N4-G4?

If you’re using every CPC Package in the default layout, you’ll need an N4-G4 Director or 4 USB485 Adapters (one per network). Watch this video about RGBPlus Networks

If you don’t have every prop, you can use fewer networks and fewer adapters or director ports. A Mini Director or single USB Adapter only supports the smart pixel packages for a 16x25 or 16x50 pixel tree by default. Using other CPC Package props requires network modifications.

Do I Need EVERY CPC Package for the Sequences to Work?

No! Just skip any props you don’t own when following the Cat5 path in our diagrams. You can add on new packages in future years.

In 5.6.0 or higher, use the Light-O-Rama Props online menu in the Preview Editor to import CPC Package Props.

Maximum Pixels Per Network?
  • Recommended Maximum Smart Pixels Per Network = 3000.
  • This includes unused props remaining on a network during reconfiguration.
  • Using complex effects may benefit from having fewer pixels on a network.

When using all or nearly all CPC Packages available, a Pixielink may improve playback quality. This advanced device is requires a computer for playback. Learn more here.

Software Requirements?

The minimum software level required for RGBPlus Sequences is version S5.6.0 Pro or S6.2.0 Pro, and is listed on each sequence's purchase page.

If you purchase an SD card playlist and do NOT plan on making any changes to the effects or the playback order of the songs, you do not need to purchase a software license.
