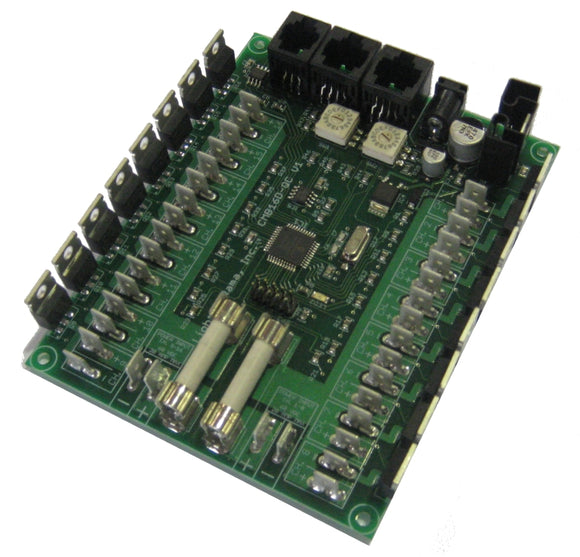

CMB-16D-QC Deluxe DC Card



Shipping calculated at checkout

Current processing/packing time for an order containing this item is 1-3 business days. The item will ship using your chosen shipping method after it is processed.

The Deluxe DC Board CMB16D-QC is a 16 channel controller that can operate independently, operate as the director unit in a multi-controller network or as an add-on unit of a larger synchronized network of controllers. Each of the 16 independent channels has a number of special effects such as dimming, ramping, twinkle and shimmer.

This card controls Direct Current (DC) loads. It has two 20 Amp DC inputs and can handle voltages up to 60VDC. In the case the supply voltage is below 12 volts, an aux input is used to power the onboard electronics. This unit is an excellent choice for control of LED Spotlights and LEDs designed for the Sign Industry.

Recommended for standalone and networked operation.

The CMB16D-QC is exactly the same as the CMB16D: Same power capacity, same firmware, etc. The only difference is that the screw terminals are replaced with quick connect terminals.
