The Light-O-Rama Touch Player puts powerful show control in a portable, easy-to-use device. With a built-in 7” touch screen, it provides the configuration and playback capabilities of a computer, while offering the simple setup and mobility of a Director.
The Touch Player supports LOR, ELOR, and DMX protocols via 4 built-in RS-485 ports, with E1.31 and Art-Net protocols supported via the 1Gb Ethernet port. Two additional USB 3.0 ports allow for file transfers via flash drive and for other expansion, with an HDMI port allowing for video integration.
The device has a built-in real-time clock which will keep time even no power is applied.
Built-in Wi-Fi enables connectivity with the Light-O-Rama mobile app, providing a professional, flexible new solution for managing your shows. The Touch Player also supports advanced options such as a REST API and Time Code synchronization.
This device is only certified for use in the United States at this time. Orders with shipping addresses outside of the United States will be cancelled and refunded.

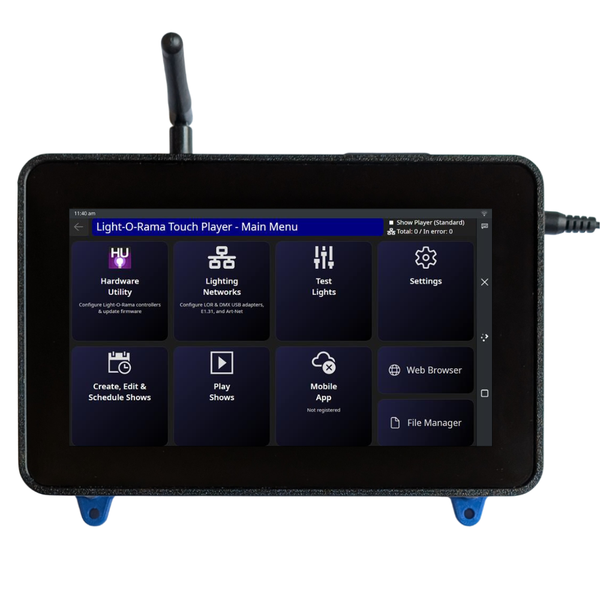

The Light-O-Rama Touch Player allows a user to control their light show without a personal computer. It can play shows without music or synchronize the lights to audio or video media. Audio can be output to a 3.5mm audio jack or Bluetooth. Video can be output to a full-sized HDMI port. User input is performed via the high resolution 7” touch screen display. From here, users can configure controllers and networks, test lights, and set up and play shows.
Lighting controllers from Light-O-Rama and third parties are supported. LOR, ELOR, and DMX protocols are supported via 4 built-in RS-485 ports. E1.31 and Art-Net protocols are supported via the 1Gb Ethernet port. The device also supports advanced integration via its REST API and can synchronize with other Touch Players or third-party devices with its SMPTE and Art-Net time code support.
Users can connect the Touch Player to the Internet via the built-in Wi-Fi, enabling the device to be controlled via Light-O-Rama’s mobile app.
The device stores data on its internal 128GB SSD drive – enough for even the largest light shows. 4GB of RAM ensures smooth device operation. Two USB 3.0 ports allow file transfers via flash drive and for expansion. For example, you could add any LOR USB adapter, a USB sound card, a third-party DMX adapter, keyboard, mouse, or additional storage.
The device has a built-in real-time clock which will keep time even no power is applied. Time can be set manually via the touch screen or automatically via an Internet connection. The device has a small built-in UPS. If power is accidentally removed, the device will shut down gracefully, ensuring your data is safe. After power is restored, pressing the power button will turn the Touch Player back on.
The package includes a 12V, 3A power adapter.
Specifications
- Power input: 12VDC, 3 amps, barrel jack (can accept 9-24VDC)
- Processor: Broadcom BCM2712, quad core Cortex-A76 @ 2.4GHz
- Display: 7-inch color, 720 × 1280 pixels, capacitive touch
- Storage: user replaceable NVMe SSD, gen 2, 1 lane, 128 GB, 2230 or 2242 size
- Memory: 4GB LPDDR4-4267 SDRAM
- Wireless:
- 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
- Bluetooth 5.0, BLE
- External antenna

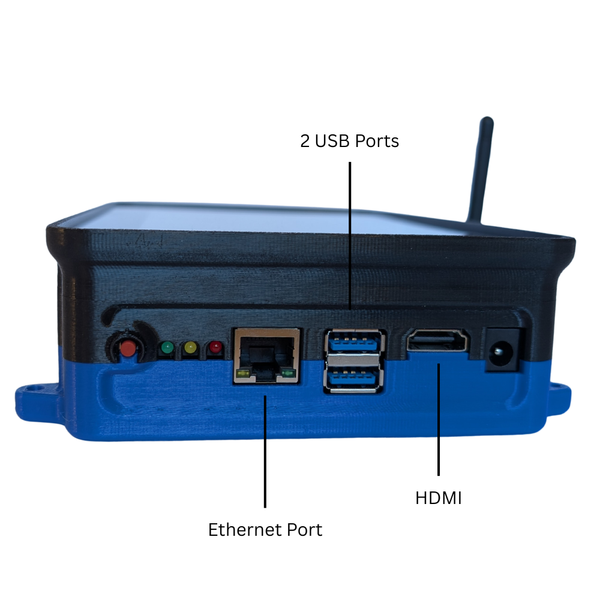

- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- Gigabit Ethernet RJ45

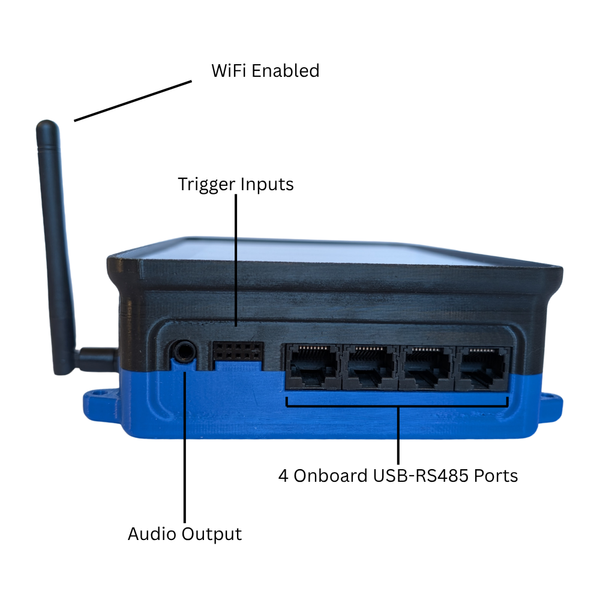

- 4 × RS485 ports on RJ45 jacks using LOR pinout. 1000K max speed
- Audio: stereo 3.5mm jack
- Full size HDMI 2.0 port (supports up to 4Kp60)
- Built-in real-time clock which will keep time even no power is applied.
- 10-pin header supporting 6 trigger inputs. Pinout compatible with LOR N4G4 director.
- Fan: 30mm x 30mm x 7.5mm, variable speed, Max RPM: 10,000
- 3 LED indicators for power status
- 30 second UPS power supply enables safe shutdown on power loss
- Operating Range: -20 C to +40 C
- Size: 197x148x49 mm (excluding external antenna)
- Net Wt. 22 oz (635 g)
Touch Player Limited Warranty
The Touch Player is warranted to be free from defects in materials and workmanship under normal use for two (2) years from the date of purchase. At our discretion, defective units will be repaired or replaced.
This warranty does not cover damage resulting from accidents (including drops, impacts, liquid exposure, or cracked screens), misuse, unauthorized modification or repair, or use outside intended conditions. The Touch Player is not weatherproof and must be used in a protective enclosure if placed outdoors. This warranty also excludes issues caused by third-party software, user-installed applications, viruses, malware, or system changes. Normal wear and cosmetic damage are excluded.
Out-of-warranty repairs, including screen replacement, may be available for a fee.
The device is pre-loaded with Light-O-Rama software; however, we do not guarantee the performance or compatibility of any additional software. Customers are responsible for backing up data, and we are not liable for data loss.
Proof of purchase is required, and we may require the unit to be returned for inspection prior to service. Shipping terms will be determined at the time of warranty claim.
To the maximum extent permitted by law, we are not liable for any indirect, incidental, or consequential damages, including loss of data, use, or business interruption.
