3 Paths to Pixel Bright Sequences

Our new Pixel Bright Sequence Layout supports three configuration options, depending on how you want to control your show, what equipment you may already own, and your willingness to explore and learn the customization side of our software.

Easiest Setup

Best for users with directors

Download a Compact Preview

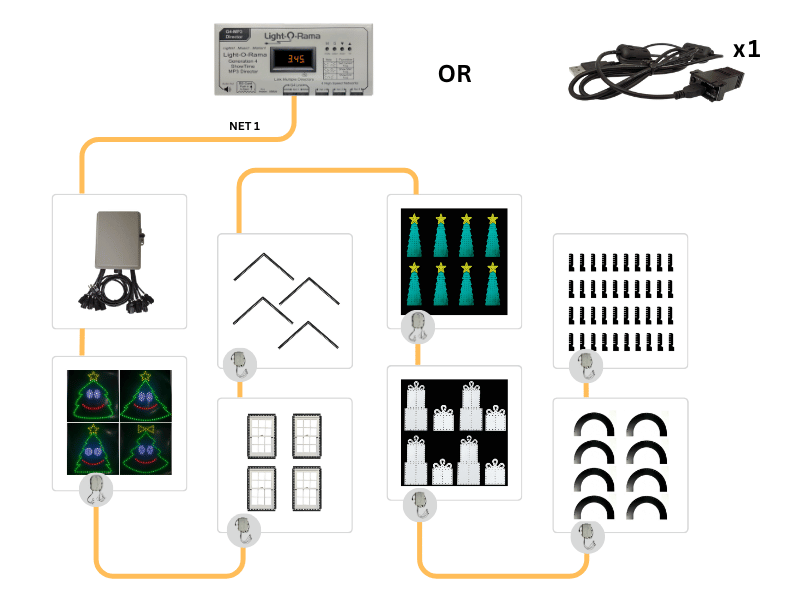

Download a free, ready-made "Compact Preview" with 1-4 ELOR networks to power modified Pixel Bright sequences. Choose the design that best matches your setup plans, then use with ELOR USB-485 Adapters or Directors.

No Custom Layout Designing required
Use a Showtime Director, computer or Touch Player for playback
Maximize the capacity of a Director or 4-Port USB Adapter with your favorite props, in a pre-designed layout.

Explore Compact Layouts

Best for users who want it all

Use our Default Layout

Play all the effects for the full ~17.7k Pixel Bright Layout with no network configuration. The default uses 1 ELOR Network (AC, Floods & Singing Faces), 5 Pixielink Ports, and 1 Aurora Core (Garage Matrix)

No Custom Layout Designing Required
Computer or Touch Player required for playback.
Configure intermediate level equipment to skip network reconfiguration and preview design.

Keep Reading This Page

Best for users willing to learn

Create a Custom Preview

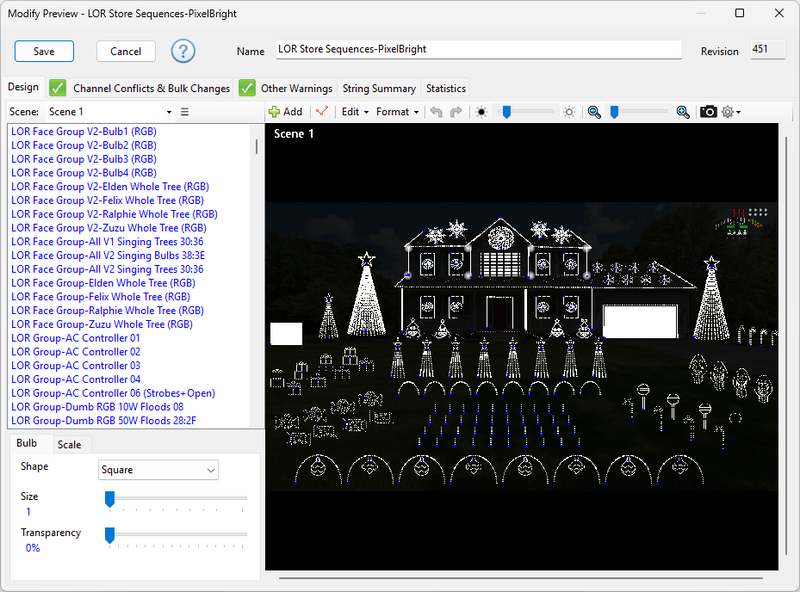

Use our software to create your preview - decide which props to buy and where they'll be installed, and see it all on your virtual home. Take full control over Unit IDs / Universes / Networks, and still use our Pixel Bright Sequences.

Design a Custom Preview!
Use a Showtime Director, computer, or Touch Player for playback
Take full control over Networks & Unit IDs for efficient design, and watch virtual playback on YOUR home!

Learn to Create a Preview

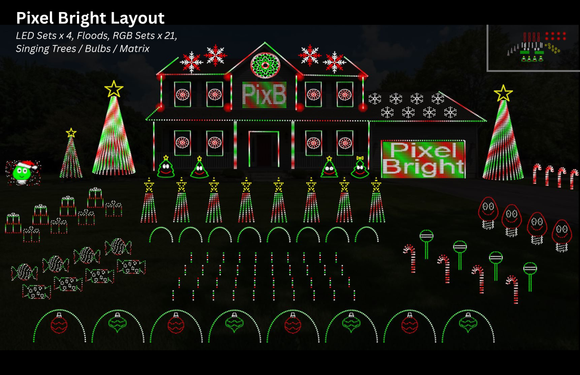

Default Layout

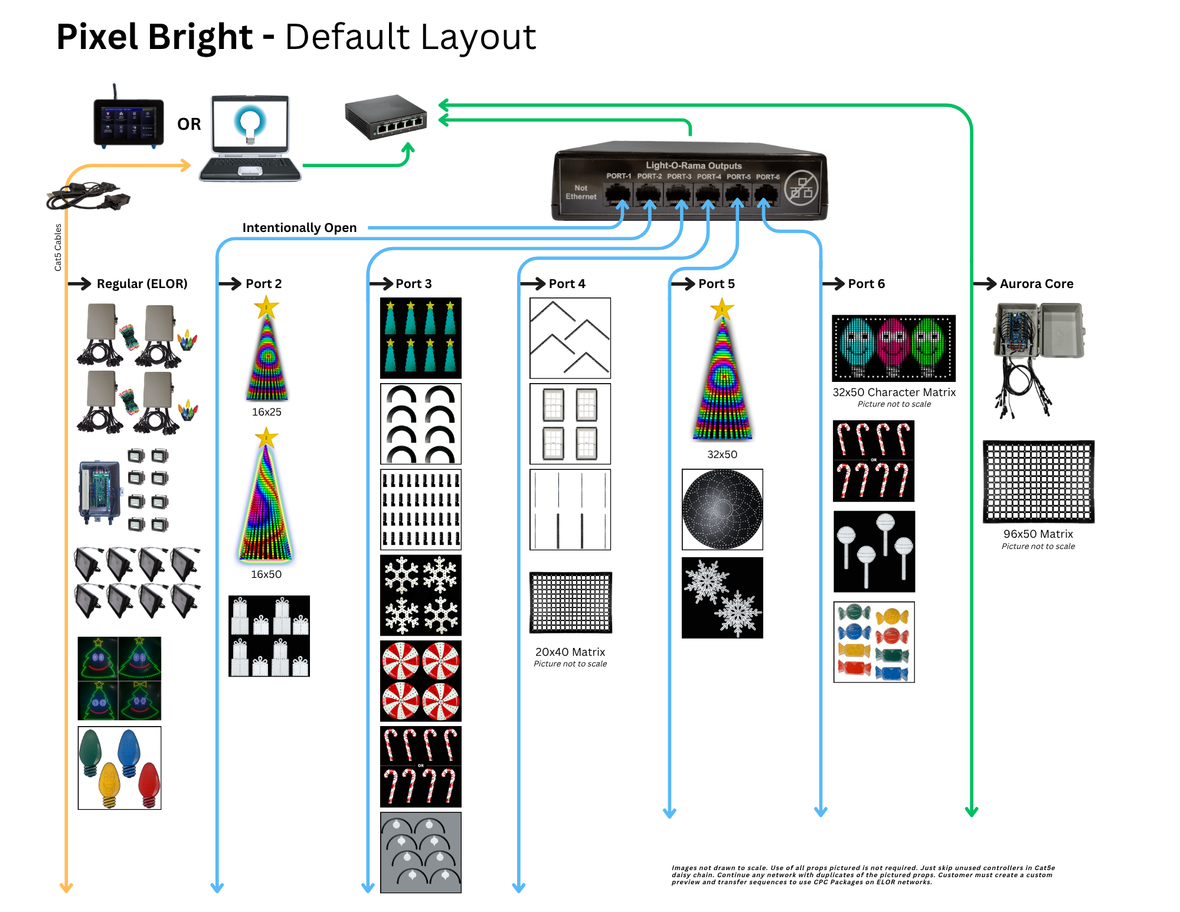

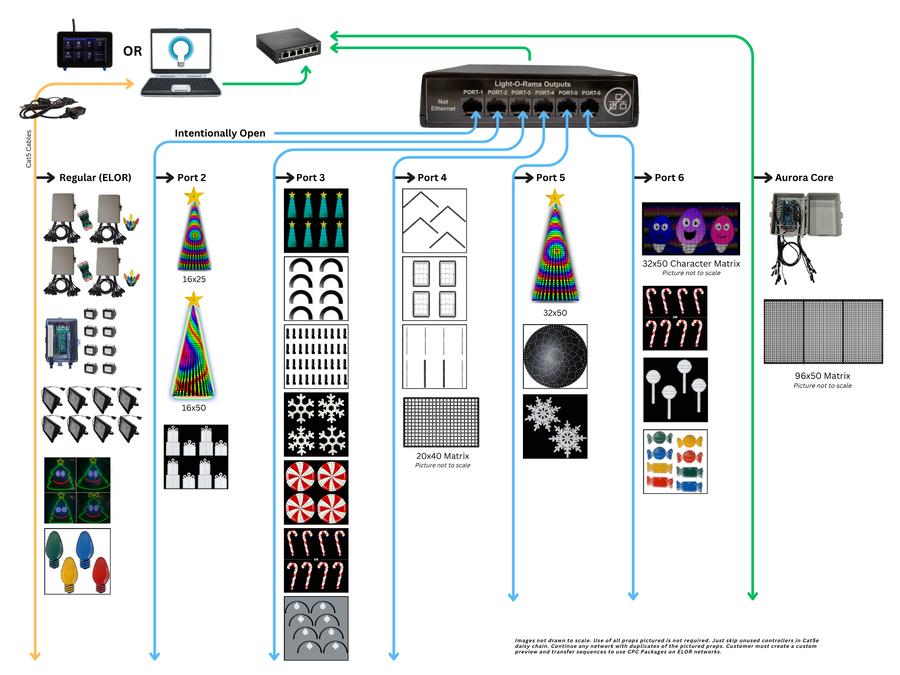

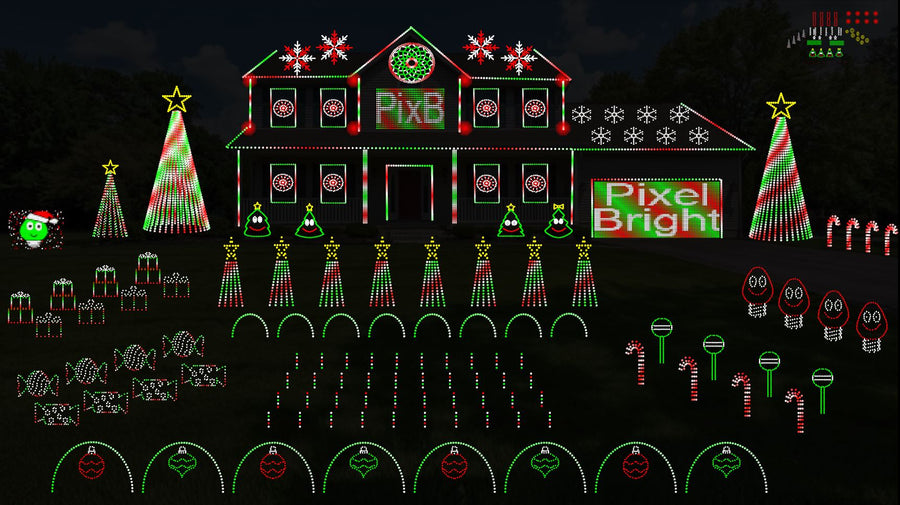

Pixel Bright Network Overview

Creating your own custom preview is always the best option, but you can also use our default layout to run your show!

To use the default layout, configure your controllers to match the settings below (or use your package Quick Guide), and all of the effects stay stored in the default sequence as you play your show, even if you don't yet own the props. This means next year, you can connect a new CPC Package (following this diagram), and the effects are there - ready to play.

CPC Packages

Packages Included in Pixel Bright

Regular Network (ELOR)

Four 16 channel AC units
4 channels of strobes (AC)
8 10-Watt Floods
8 50-Watt Floods
Four Singing Trees
Four Singing Bulbs

Pixielink Port 1

Intentionally left open for pre-existing custom props in your layout (Universes 1-32)

Pixielink Port 2

Pixel Tree (16x25=400)
18" Star Tree Topper (1x50)
Pixel Tree (16x50=800)
32" Star Topper (1x50) for trees with strands ending at the TOP
Presents (4x100 + 4x50)

Pixielink Port 3

Mini Trees with Stars (8x100)
Mini Arches (8x25)
Pixel Stakes (40x5)
Snowflakes (4x48)
Spinners (4x100)
Candy Canes (8x48)
Large Arches (4x50)
Ornaments (8x75)

Pixielink Port 4

Roofline Segments (4x100)
Frames (4x100)
House Verticals (6x50 + 3x150)
Matrix (20x40=800)

Pixielink Port 5

Pixel Tree (32x50 folded = 1600px)
32" Star Topper (1x50) {Separate Pixie2 Controller REQUIRED}
Mandala (600px)
Crystal Snowflakes (2x300)

Pixielink Port 6

Singing Character Matrix (32x50)
Candy Canes (4x48) - Complementary to Lollipop Effects
Lollipops (4x100)
Wrapped Candies (8x100)

Aurora Core

Garage Matrix (96x50)

Additional Props / Special Notes

The default Preview contains an additional set of 4 Snowflakes, 4 Spinners, 4 Frames, 2 Rooflines (as Door and Garage Outlines), and 2 Crystal Snowflakes.

The duplicate props above are configured in the default preview to "use the same channels as" the original CPC Package, allowing you to simply buy a second package and integrate these props into your display. More advanced users can create a custom preview to daisy chain the duplicate props from ports on their current controllers, within networking limits.

8 Candy Canes are shown in the preview, and sequenced separately as two groups of 4. The Candy Canes near the Lollipops are often sequenced with complimentary Candypack effects. The Candy Canes near the Mega Trees often have different sequencing, designed for Candy Canes elsewhere as distinct props in your show.

Traditional Light Setup

Use these arrangements for AC lights & controllers. RGBPlus builds on the controller layouts in our Traditional Layout. For more details on decorating with traditional lights, explore the Traditional Layout Setup Guide.

Traditional / Deluxe Set Up

Controller 01

Four groups of four fixtures (Does not have to be the same props we have decorated in the picture)

Controller 02

Four fixtures, each with four different colored light strings, taking up 4 channels each (4x4=16)

Controller 03

Two groups of 8 fixtures (like two arches, two small mega trees, two sets of 8 yard props)

One set of 16 (like a 16 strand mega tree)

Controller 04

Two groups of 8 fixtures (like two arches, two small mega trees, two sets of 8 yard props)

Two groups of 8, each with 2 colors of lights on separate channels (8x2=16)

AC / RGB Prop Controller Setup

Unit ID and network settings for each controller in the Pixel Bright Full Layout. A PixieLink is required to use this full default network layout.

Controller	Unit ID	Network (Computer / Director)	Configuration (click to enlarge)
16 Channel AC Controller	01	USB485 - Regular	Preset to Unit ID 01 by default No additional configuration necessary
16 Channel AC Controller	02	USB485 - Regular	Set Unit ID via LOR Control Panel Watch Video →
16 Channel AC Controller	03	USB485 - Regular	Set Unit ID via LOR Control Panel Watch Video →
16 Channel AC Controller	04	USB485 - Regular	Set Unit ID via LOR Control Panel Watch Video →
10W Flood Lights	08	USB485 - Regular

Included prop	DMX Universes	Connection	DIP switch settings	DIP switch (click to enlarge)
RGB Tree 16×25	33-40	Pixielink — Port 2	01-08
RGB Star Topper for 16×25 Tree	40 circuits 151–300	Pixielink — Port 2	08	Connects to 16×25 Tree's controller
RGB Tree 16×50	41-56	Pixielink — Port 2	09-18 Spanning 0A-0F
RGB Star Topper for 16×50 Tree	56 circuits 151–300	Pixielink — Port 2	18	Connects to 16×50 Tree's controller
8 RGB Presents Large (1-4), Small (5-8)	57-60	Pixielink — Port 2	19-1C
8 RGB Mini Trees	65-72	Pixielink — Port 3	01-08
8 RGB Mini Arches	73-76	Pixielink — Port 3	09-0C
40 RGB Pixel Stakes	77-80	Pixielink — Port 3	0D-10
4 RGB Snowflakes	81-84	Pixielink — Port 3	11-14
4 RGB Spinners	85-88	Pixielink — Port 3	15-19
8 RGB Ornaments	89-96	Pixielink — Port 3	19-20 Spanning 1A-1F
4 RGB Roofline Segments	97-100	Pixielink — Port 4	01-04
4 RGB Windows / Frames	101-104	Pixielink — Port 4	05-08
8 RGB Verticals / Columns Columns on ports 2 & 3	105-112	Pixielink — Port 4	09-10 Spanning 0A-0F
RGB 20×40 Matrix	113-120	Pixielink — Port 4	11-18
RGB Tree 32×50	129-144	Pixielink — Port 5	01-10 Spanning 0A-0F
RGB Star Topper for 32×50 Tree	145	Pixielink — Port 5	11
RGB Diamond Mandala	149-152	Pixielink — Port 5	15-18
2 RGB Crystal Snowflakes	153-156	Pixielink — Port 5	19-1C
RGB 32×50 Singing Character Matrix	161-176	Pixielink — Port 6	01-10 Spanning 0A-0F
4 RGB Candy Canes	177-180	Pixielink — Port 6	11-14*
4 RGB Lollipops	181-184	Pixielink — Port 6	15-18*
4 RGB Lollipops + 4 RGB Candy Canes Candy Canes (1-4), Lollipops (5-8)	177-184	Pixielink — Port 6	11-18*
8 RGB Wrapped Candies Round (1-4), Square (5-8)	185-192	Pixielink — Port 6	19-20 Spanning 1A-1F
RGB 96×50 Matrix	193-224	Aurora Core	—	—
4 RGB Singing Trees Ordered: Elden, Felix, Ralphie, Zuzu	—	USB485 — Regular	30-37
4 RGB Singing Bulbs Color order does not matter	—	USB485 — Regular	38-3F
MegaPackMini Trees + Arches + Pixel Stakes Mini Trees (1-8), Arches (9-12), Stakes (13-16)	65-80	Pixielink — Port 3	01-10 Spanning 0A-0F
MegaPackSnowflakes + Spinners Snowflakes (1-4), Spinners (5-8)	81-88	Pixielink — Port 3	11-18
MegaPack8 RGB Ornaments + 8 RGB Large Arches	89-96	Pixielink — Port 3	19-20 Spanning 1A-1F
MegaPackCrystal Snowflakes + HD Diamond Mandala Mandala (1-4); Snowflakes (5-8)	149-153	Pixielink — Port 5	15-1C
CandyPackWrapped Candies + Lollipops + Candy Canes Candy Canes (1-4), Lollipops (5-8); Wrapped Candies (9-16)	177-192	Pixielink — Port 6	11-20* Spanning 1A-1F
*Candy Canes and Lollipops can connect in two ways. They can span 8 ports for different effects between the two prop types, or they can alternatively daisy chain to one another on 4 ports for complementary effects.

Configuring Your PixieLink

Getting Started

Plug your 12v adapter into the Pixielink. Plug your CAT5e/CAT6 cable into your computer (or Touch Player) and into the back of the Pixielink

Note: This configuration does not utilize a router or network switch. Advanced users may configure the network differently, but doing so is not necessary for this setup.

Configure your Touch Player / Show PC Ethernet Settings

This configuration assumes you have a WiFi connection for accessing the internet. Your computer's ethernet port will be used to connect to the PixieLink.
If needed, you can purchase a separate wired or WiFi network adapter if you're using a wired LAN connection for internet access.

Access the Windows Control Panel by navigating to Control Panel > Network and Internet > Network Connections Window.
Open the Ethernet object then click Properties.
Find and select Internet Protocol Version 4 (TCP/IPv4) then click Properties. Enter the IP address such as 192.168.1.200 with a subnet mask of 255.255.255.0 then click OK.
Click OK on the Ethernet Properties Window and then Close the Ethernet Status and Network Connections windows.

Configure your PixieLink Port Configuration

Access your PixieLink's webpage by opening your web browser. Type 192.168.1.206 in your browser's address bar and press Enter. Use this page to configure PixieLink Port and DMX universe settings.
To use a PixieLink and the default Pixel Bright layout, your PixieLink should be configured to operate on DMX universes 1 - 192. If you're using a custom PixieLink network layout, your setup may look a little different than what's shown here.

Match your screen to one of the configurations below.

Pre-configured	Blank configuration

If your PixieLink is already configured for universes 1–192, you're all set. Continue to the next step below.	If your port screen is blank, download the Pixel Bright configuration file and load it into your PixieLink. Right click and "save as" to download this Pixel Bright PixieLink Configuration File. In your PixieLink, switch to the Port Config page, click Load Configuration and select the downloaded file. Click Save Configuration

Pre-configured

Blank configuration

If your PixieLink is already configured for universes 1–192, you're all set. Continue to the next step below.

If your port screen is blank, download the Pixel Bright configuration file and load it into your PixieLink.

Right click and "save as" to download this Pixel Bright PixieLink Configuration File.
In your PixieLink, switch to the Port Config page, click Load Configuration and select the downloaded file.
Click Save Configuration

Adding the PixieLink to the Light-O-Rama Control Panel

Click on Controller Setup, and select Configure a controller with a web-based setup page.
Click the 192.168.1.200 network, and click Scan. Your PixieLink will appear below in the Scan Results. Click Add As and select E1.31 (sACN).

If your scan returns no results, refer to the Online Manual for more assistance →.
On the Controller setup window, leave Start Universe at 1, and change End Universe to 192. Click Save.
Navigate to the Networks tab and verify your Pixielink is now configured - you should see a green checkmark to indicate it's connected.

Sequence Playback

Test in the Light-O-Rama Sequencer
1. Ensure that your Light-O-Rama Control Panel is running.
2. Ensure Control Lights in the Sequencer, and playback a single Pixel Bright sequence. Ensure this is a default Pixel Bright sequence, not an RGBPlus sequence.
Playback a Show: Use the standard Create Shows process to playback your show playlist.

For more advanced configuration information, read more in the Online Manual →.
