For non-modified use with RGBPlus sequences, the controller in this package must be connected to Network Aux C/Network 4. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.

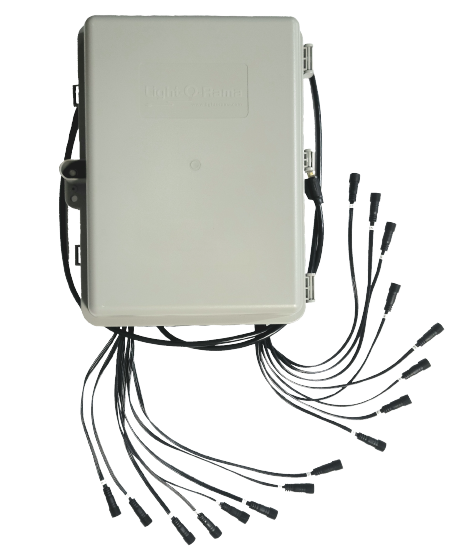

The Assembled Pixie16 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell RSP-500-12 - 120/240V input - 12V - 41.7A output - with Power Factor Correction and extend temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

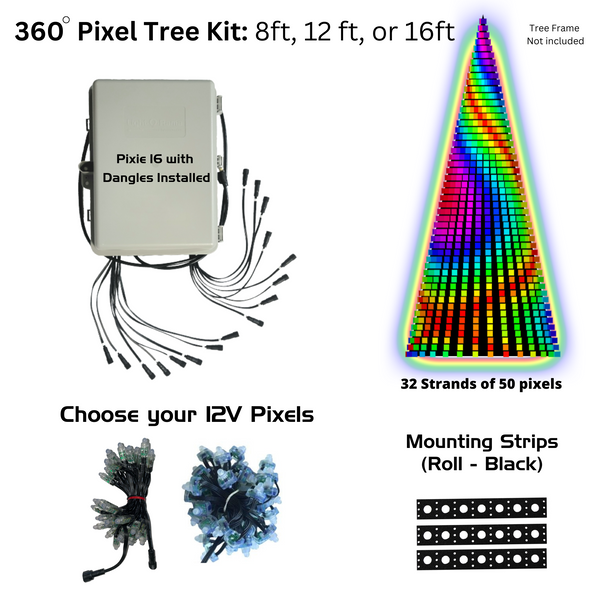

Included in this Package:

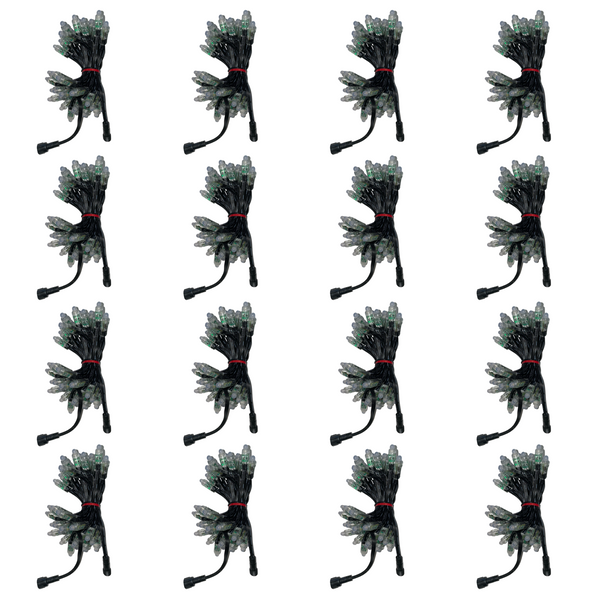

- 32 Strands of 50 Ct Pixels (Select one from below)
- Bullet Pixels - Black/White (Mounting Strips Recommended)
- Square Pixels - Black/White (Mounting Strips Recommended)
- Pixie16 Controller - Assembled -12V - With Dangles Included (Black)
- Pixel Mounting Strips (8' sections) - Black or White
- 16 Pixel Extensions - Black (5ft, 10ft, 15ft, or 25ft)
- Cat5 Cable (10ft, 25ft, 50ft, or 100ft)
- Star Topper Kit
- Tree Frame
- Tree Base
- Center Pole or Pipes
- Pole for Star Attachment
- Guy Wires or Cables
- Assembly Hardware (Fasteners, Screws, Washers, Nuts, etc.)
- Ground Stakes
Frame construction is the responsibility of the purchaser. We do not provide instructions for the creation of pixel tree frames for this package.
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded.
If you want duplicates of the props in this package but still want to use our RGB Plus Sequences, just put multiples of this kit into your cart and make sure each Pixie controller uses the SAME Unit IDs when you set up your display. Read more about our sequences in the RGBPlus Sequence tab.
Pixels are not pre-pushed. Assembly is to be completed by the customer.
The first pixel of each strand of 100 (two 50s connected) should begin at the bottom of every odd row and continue upwards towards the top. The string should then fold and continue downward down the adjacent even numbered strand and end at the base of the tree. When viewing the tree as the audience, the first strand should be on the left of the tree and the 32nd strand should be on the right. This kit can be used to create a 180 or 360 degree Mega Tree.

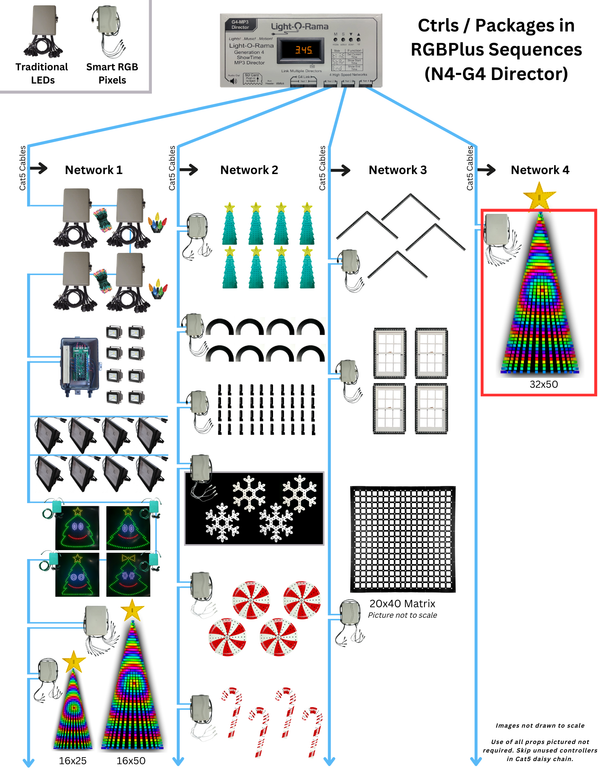

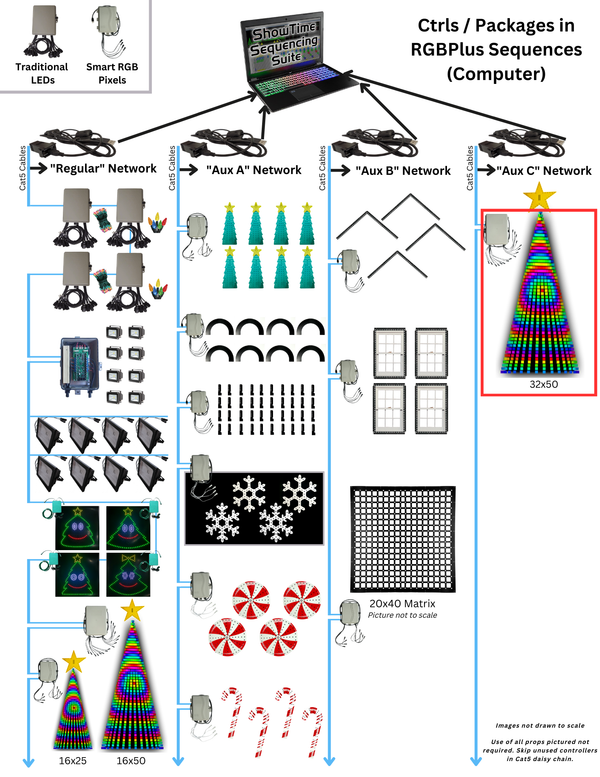

To use this 32x50 CPC MegaTree with our RGBPlus Sequences (Available October 2022), the Pixie8 controller in this package must be connected to the AuxC network on your computer or Net 4 of your N4-G4 Showtime Director. You must be using 5.6.8 or higher in order to use RGBPlus Sequences with a computer.
The Pixie16 should be given a base Unit ID of 70; The 16 Unit IDs for the 16 ports of this Pixie16 controller must be 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 7A, 7B, 7C, 7D, 7E, and 7F, both physically on your controller and in your S5 Preview, which correspond to ports 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, and 16 of your Pixie16. Learn how to set the Unit ID of your Pixie controller using DIP switches by clicking here.
Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
The warranty applies to the controller board and pixels included in this package.
