What can your display look like with our CPC Packages? Take a look!
For non-modified use with RGBPlus sequences, the controller in this package must be connected to Network Aux A/Network 2. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.
The Assembled Pixie4 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell RSP-150-12 - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extend temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.
Included in this Package:

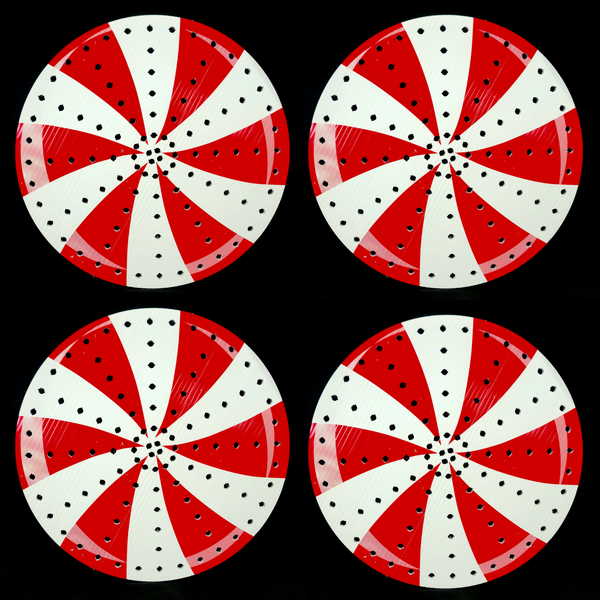

- 4 Coro Spinners - 100 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
- Approx. 22" in diameter
- 10mm White Coro with Red Stripes

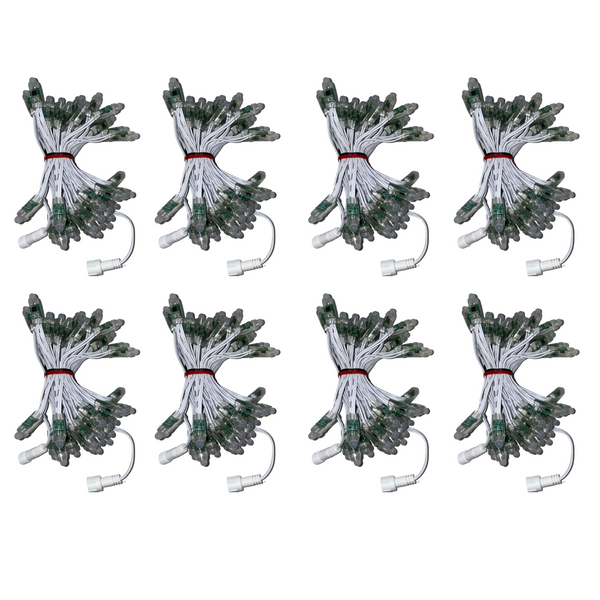

- 8 Strands of White Bullet Pixels - 50 Ct (4" spacing). Two strands of 50 should be connected together per prop.
- Pixie4 Controller - Assembled -12V - With Dangles Included
- 4 Pixel Extensions - White (5ft, 10ft, 15ft, or 25ft)
- Cat5 Cable (10ft, 25ft, 50ft, or 100ft)
- Mounting material for home attachment
- Metal stakes or other ground mounting material
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. To incorporate more than 4 Spinners into your custom sequenced display, visit our "CP" collection of "Coro-Pixel" packages so you can use the Pixie controller that best suits your needs.
If you want more than 4 Spinners but still want to use our RGB Plus Sequences, just put multiples of this kit ito your cart and make sure each controller uses the SAME Unit IDs when you set up your display. Read more about our sequences in the RGBPlus Sequence tab.

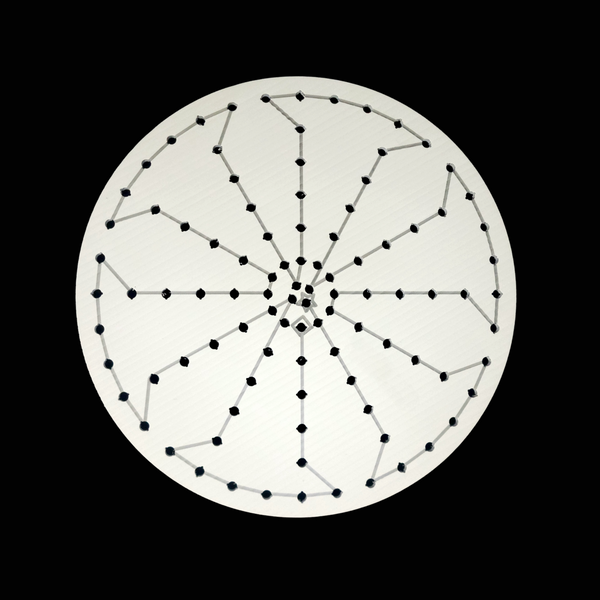

Pixels are not pre-pushed. Assembly is to be completed by the customer. When viewing the spinner from the back, the spoke with the Pixel Path "star" (for "start") should be pointing straight down, with the pixel path continuing in a clockwise fashion until it reaches the "square" (for "stop").

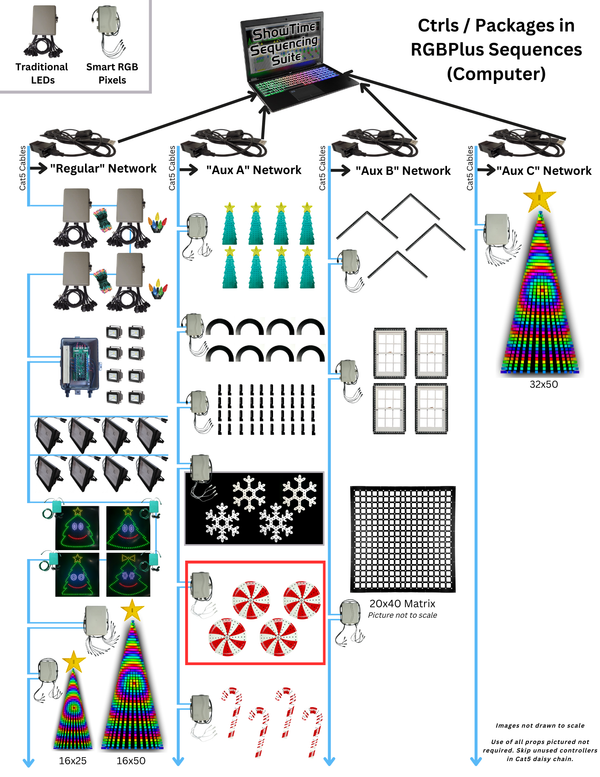

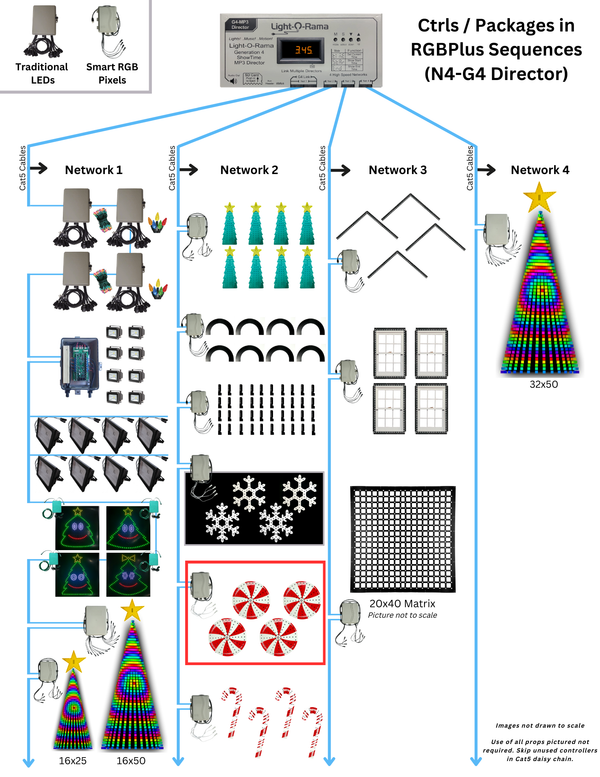

To use the Spinner CPC Package with our RGBPlus Sequences (Available October 2022), the Pixie4 controller in this package must be connected to the AuxA network on your computer or Net 2 of your N2-G4 or N4-G4 Showtime Director. You must be using 5.6.8 or higher in order to use RGBPlus Sequences with a computer.
Spinners should be arranged with spinner 1 on the left if the spinners are in a horizontal stack, or spinner 1 should be on the top of a vertical stack. When viewing the spinner from the back, the spoke with the Pixel Path "star" (for "start") should be pointing straight down, with the pixel path continuing in a clockwise fashion until it reaches the "square" (for "stop").
The Pixie4 should be given a base Unit ID of 1D; The four Unit IDs for the four ports of this Pixie4 controller (and therefore your spinners) must be 1D, 1E, 1F and 20, both physically on your controller and in your S5 Preview, which correspond to ports 1, 2, 3, and 4 of your Pixie4. Learn more about setting the Unit ID of your Pixie controller using DIP switches by clicking here.
Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
View the manual for the Pixie Controller by clicking here.
