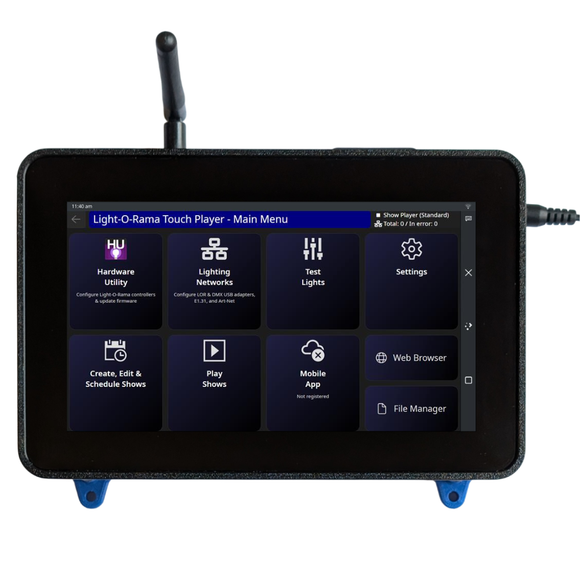

The Light-O-Rama Touch Player allows a user to control their light show without a personal computer. It can play shows without music or synchronize the lights to audio or video media. Audio can be output to a 3.5mm audio jack or Bluetooth. Video can be output to a full-sized HDMI port. User input is performed via the high resolution 7” touch screen display. From here, users can configure controllers and networks, test lights, and set up and play shows.
Lighting controllers from Light-O-Rama and third parties are supported. LOR, ELOR, and DMX protocols are supported via 4 built-in RS-485 ports. E1.31 and Art-Net protocols are supported via the 1Gb Ethernet port. The device also supports advanced integration via its REST API and can synchronize with other Touch Players or third-party devices with its SMPTE and Art-Net time code support.
Users can connect the Touch Player to the Internet via the built-in Wi-Fi, enabling the device to be controlled via Light-O-Rama’s mobile app.
The device stores data on its internal 128GB SSD drive – enough for even the largest light shows. 4GB of RAM ensures smooth device operation. Two USB 3.0 ports allow file transfers via flash drive and for expansion. For example, you could add any LOR USB adapter, a USB sound card, a third-party DMX adapter, keyboard, mouse, or additional storage.
The device has a built-in real-time clock which will keep time even no power is applied. Time can be set manually via the touch screen or automatically via an Internet connection. The device has a small built-in UPS. If power is accidentally removed, the device will shut down gracefully, ensuring your data is safe. After power is restored, pressing the power button will turn the Touch Player back on.
The package includes a 12V, 3A power adapter.
Specifications
- FCC Certified
- Power input: 12VDC, 3 amps, barrel jack (can accept 9-24VDC)
- Processor: Broadcom BCM2712, quad core Cortex-A76 @ 2.4GHz
- Display: 7-inch color, 720 × 1280 pixels, capacitive touch
- Storage: user replaceable NVMe SSD, gen 2, 1 lane, 128 GB, 2230 or 2242 size
- Memory: 4GB LPDDR4-4267 SDRAM
- Wireless:
- 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
- Bluetooth 5.0, BLE
- External antenna

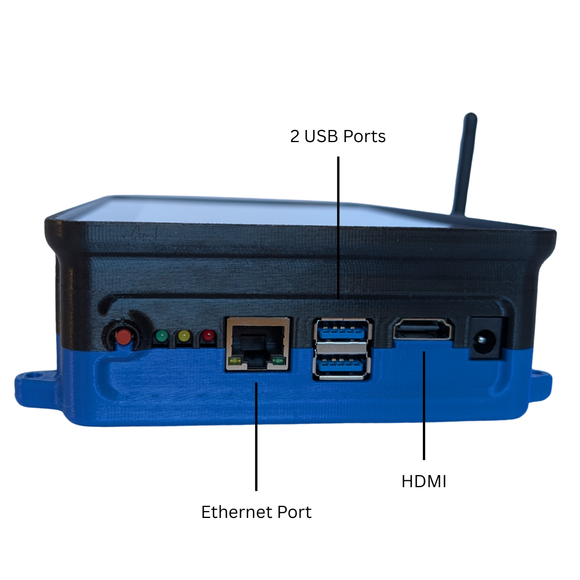

- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- Gigabit Ethernet RJ45

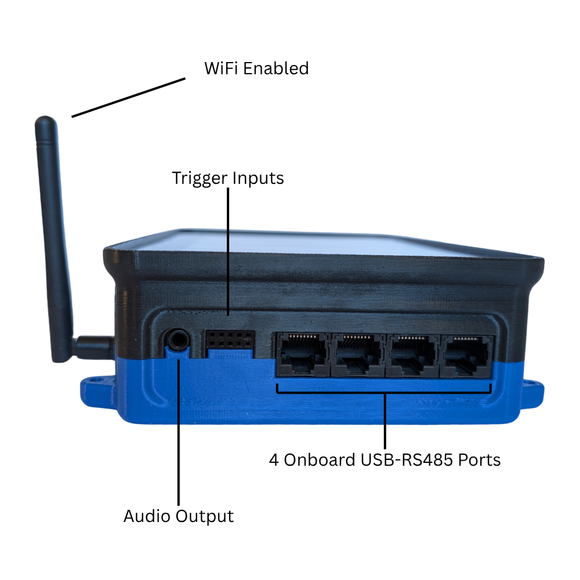

- 4 × RS485 ports on RJ45 jacks using LOR pinout. 1000K max speed
- Audio: stereo 3.5mm jack
- Full size HDMI 2.0 port (supports up to 4Kp60)
- Built-in real-time clock which will keep time even no power is applied.
- 10-pin header supporting 6 trigger inputs. Pinout compatible with LOR N4G4 director.
- Fan: 30mm x 30mm x 7.5mm, variable speed, Max RPM: 10,000
- 3 LED indicators for power status
- 30 second UPS power supply enables safe shutdown on power loss
- Operating Range: -20 C to +40 C
- Size: 197x148x49 mm (excluding external antenna)
- Net Wt. 22 oz (635 g)
The Sequencer program (and embedded Preview Editor) are not included in the Touch Player software package due to the 7" screen size. A computer with Light-O-Rama software installed is required to create or edit sequences. Packaged show files (.lss) can be transferred via your computer's Network and Sharing Center, or an external thumb drive.
Open Source Notice
The Touch Player's operating system is built on Raspberry Pi OS and KDE Plasma Mobile, both open-source projects. In keeping with their GPL/LGPL licenses, we've published the source code for any modifications we've made: GitHub - Lightorama/LOR-Touch-Player. The Light-O-Rama playback software itself is proprietary and is not covered by this license.
