Singing RGB Character 'Swap a Prop' Package

SKU: SingingTree-Elden|SingingPumpkin-Jack|pixie2-black|Dangle-Black-LOR|12V-Square-Black-50-LOR|Ext-Black-5ft-LOR|CustomerAssemble


Select one Singing Tree and one Singing Pumpkin so you can 'Swap a Prop' and use the same controller for different holidays. Singing Faces are created with coro and square pixel nodes. Two 5ft extensions included.

$459.95

Shipping calculated at checkout

Singing Tree Character: Elden
Singing Pumpkin Character: Jack
Jack
Gourdy
Max
Munchkin
Current processing/packing time for an order containing this item is 1-3 business days. The item will ship using your chosen shipping method after it is processed.

Description Mouth Movements Modes Warranty

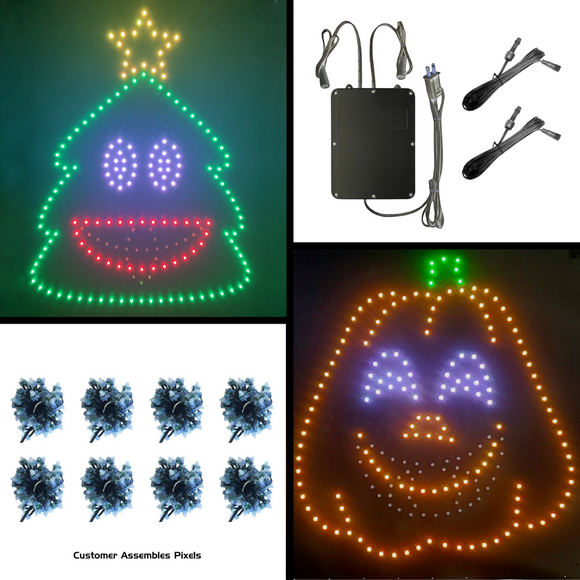

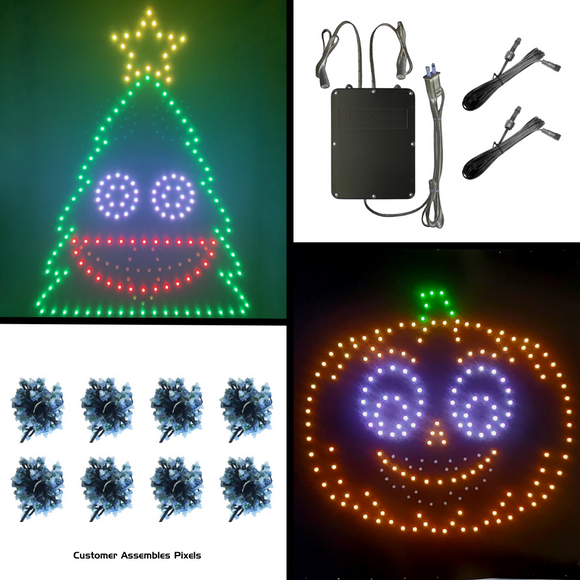

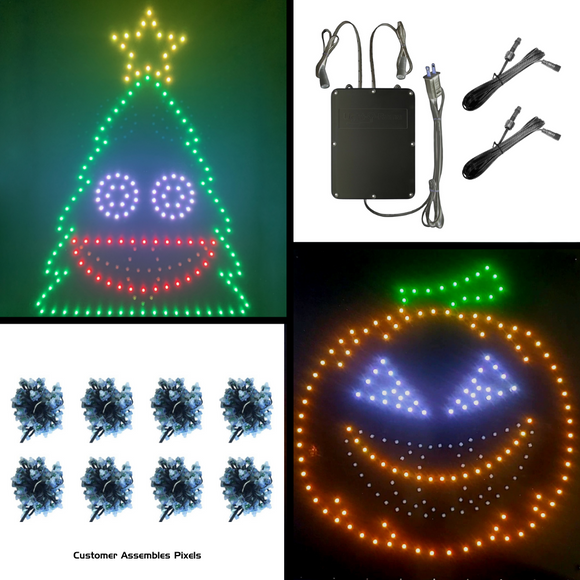

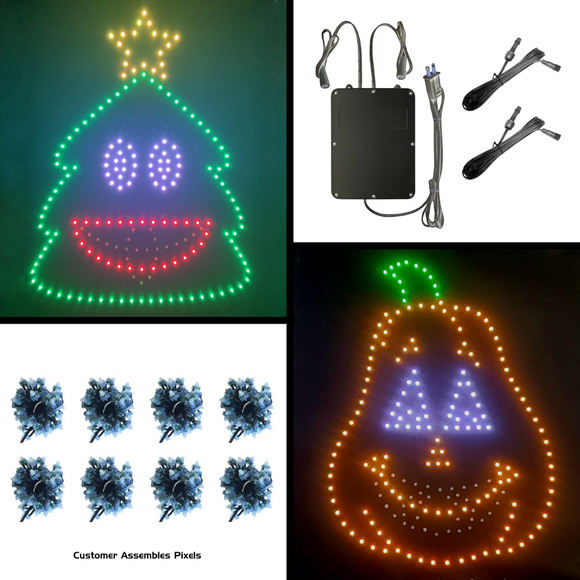

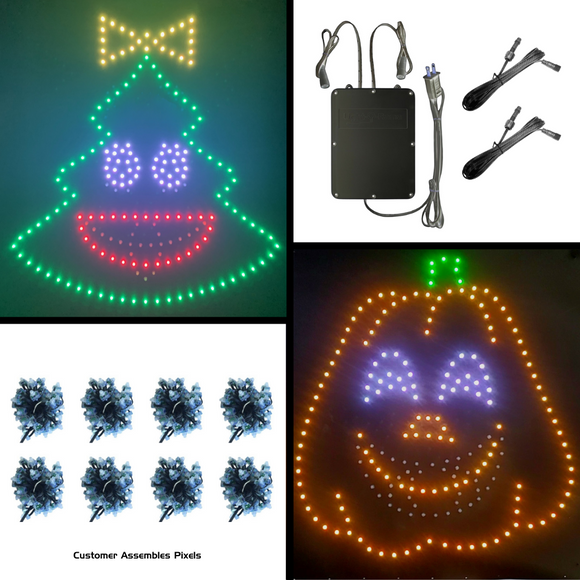

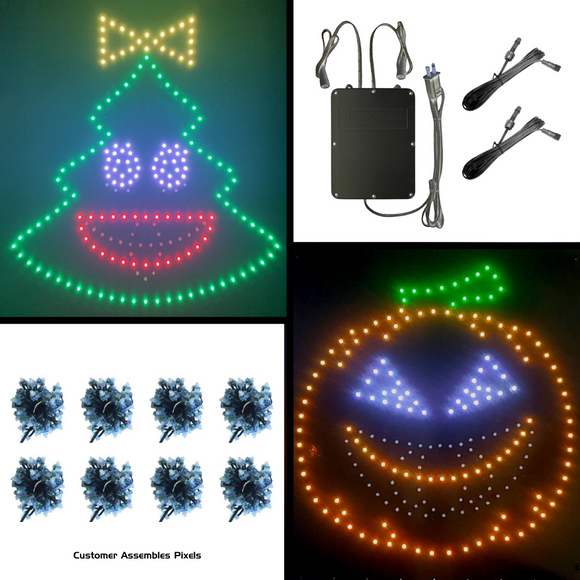

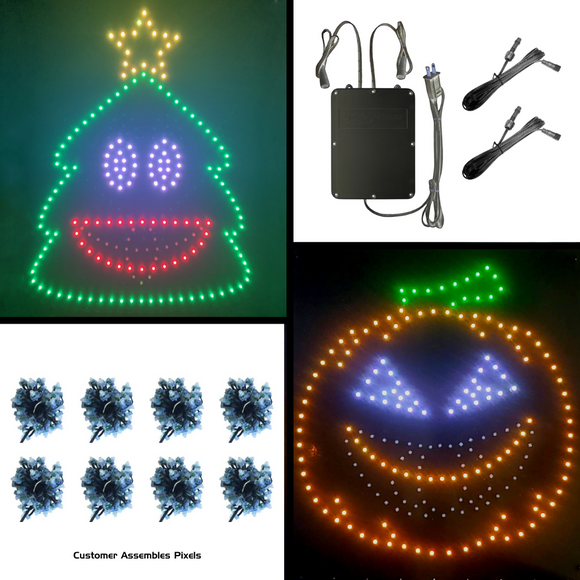

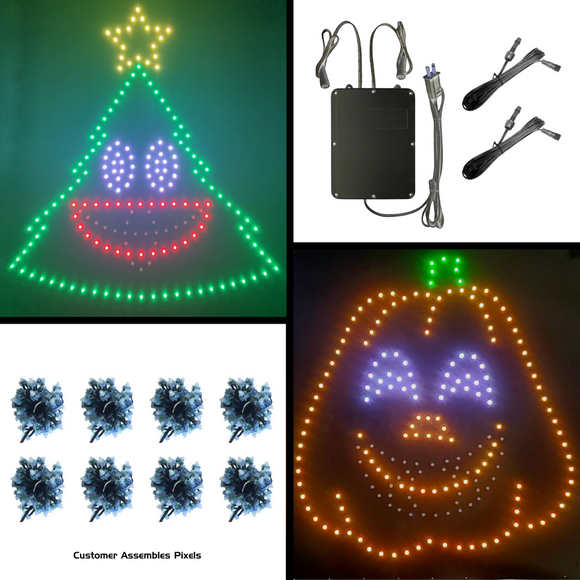

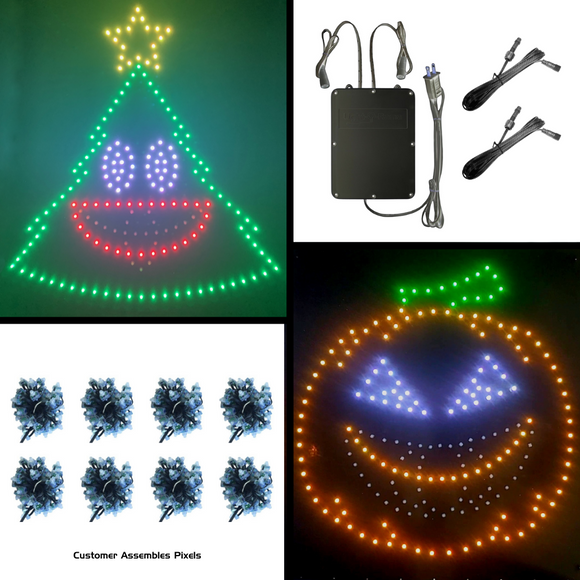

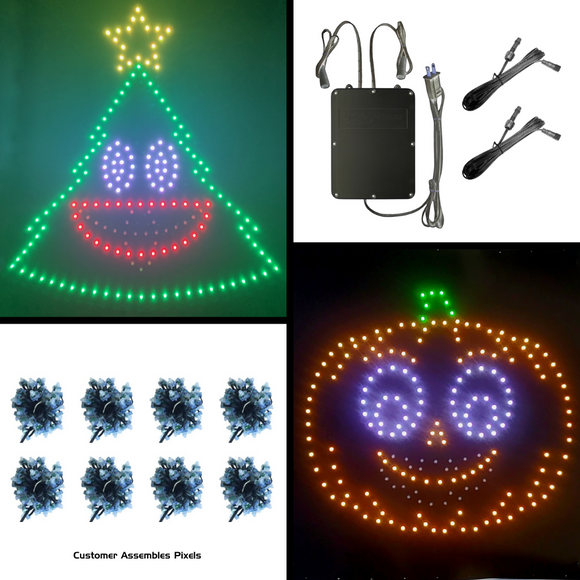

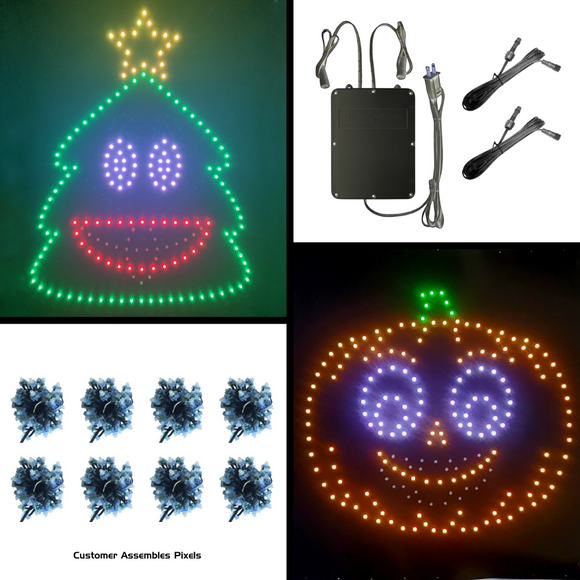

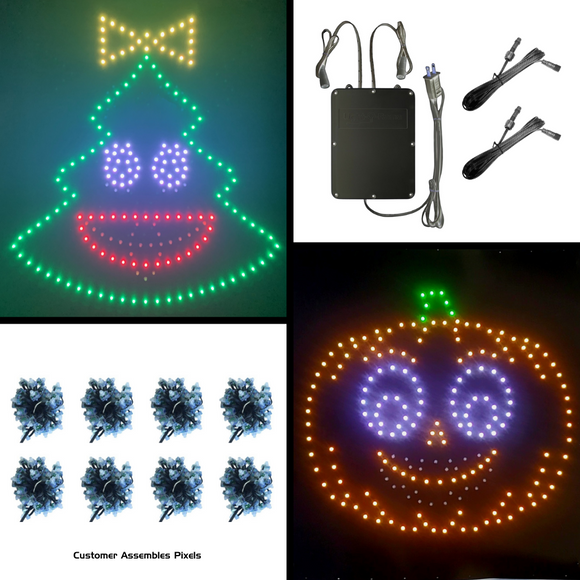

This Light-O-Rama 'Swap a Prop' Singing Character package includes two singing faces (one tree and one pumpkin), 400 pixel nodes, a Pixie2 controller, and two 5ft extensions. Use the same Pixie2 controller for Halloween and Christmas and just "Swap your Prop" with a simple setting change in the LOR Control Panel of the Software Suite.

Customer assembling is required for this package - pixels will need to be inserted into the Singing Face coro by the customer after delivery, following the pixel path printed on the back of the coro face. Each character uses 190-200 smart pixels based on four 50 count pixel strings. Pixel spacing is 1-2″ depending on location.

FRAMES NOT INCLUDED

See DIY Frame Build Option Here

Dimensions (for optional frame building): 42"h by 39"w



Read more about set up instructions for your face by clicking here.



Each singing face character is controlled by an outdoor rated, weatherproof Pixie2 controller with built-in power supply. Set the Pixie2 for the respective character in use, connect the Pixie2 to your existing standard Light-O-Rama data network with a Cat5 or Cat6, then add in talking/singing character effects (or buy our pre-made sequences).

These characters can be controlled using a standard PC set up (with a USB485 adapter) or with any of our Showtime Directors. If you are using these Singing Faces with any sequences purchased from our sequence store, they should be connected to your “Regular” computer network or “Net 1” Showtime Director network.

Note: Software is not included. We recommend that you purchase the Generic Starter Package to receive the software at a discount if you don't already have a license. The Advanced Version of the Light-O-Rama Software Suite is required to use Standalone singing face sequences from our store. The Pro Version of the Light-O-Rama Software Suite is required to use RGBPlus sequences (which include effects for singing faces).

Each singing face is on a sheet of outdoor rated, UV stabilized, black plastic that is 42 inches tall by 39 inches wide. A singing character has fourteen circuits of RGB control: body outline, star or bow, two eye movements and ten mouth movements. Our V1 faces contained the first eight items in this list (stopping after the ‘O or U’ mouth position).

  • character outline
  • star/bow on top
  • eyes closed
  • eyes open
  • mouth closed
  • mouth E (half open)
  • mouth A or I (full open)
  • mouth O or U
  • mouth Ah
  • mouth M, B or P
  • mouth F or V
  • mouth L
  • mouth W or Q
  • mouth etc.



RGB pixels are used in our singing faces so a section can be any color, making it useful when expressing moods during a song.  The lips might change colors or the eyes could flash from green to blue when appropriate.

Our Pixie controllers have a special configuration option to make each of these fourteen sections act like dumb RGB pixels. This way, adding a singing face to your network only takes up “14 dumb pixels” instead of the full “200 smart pixels” actually used to create this face. This makes sequencing easier for you and saves you network space at the same time.

Personality Mode - Default

Singing Face controllers are shipped already configured for personality mode. Using the Hardware Utility, two ports of the Pixie controller have been assigned to the respective character. It is important to connect the ports to the right character as pixel placement is different for each character - they are not interchangeable.

Firmware settings allow personality mode to treat a singing character as 14 pixels on your network instead of the full 200 pixel nodes used. (14 sections - 10 Mouth, 2 Eyes, Outline, Topper)

The personality of a singing face can be changed or removed by using a computer with Light-O-Rama software installed. Scan for the controller in the Hardware Utility, choose Config for your Pixie, and open the Advanced settings to find the dropdown.

Custom Mode

A custom model of V2 singing characters can be used if personality mode is disabled in the Hardware Utility. A custom model will use the full 200 pixels of data on your network instead of 14.

Use a custom model to use your Pixie in Double Unit ID mode (firmware v1.11+ required), use an Aurora Core or Aurora Edge, or to use Motion Effects on any section of your character instead of solid colors. Custom models will NOT work automatically with Light-O-Rama store sequences (which use personality mode configured effects), and will not transfer with tags. Copy and paste is required to use effects from Store Sequences.

Click the character name below to download the .lpeprop file to import into your preview.

Legacy Mode (Trees Only)

This singing face can also be used in V1 Mode. Placing a singing face into V1 mode will allow it to work with any previously purchased Singing Face Motion Paks or custom sequences created for LOR V1 faces (before the 10-Mouth movement faces were available) without any sequence modification required.

All Light-O-Rama “Singing Face Standalone” or “RGBPlus” sequence you purchase will contain both the V1 and V2 version of this singing face character.

To use this singing face in “V1 Mode” (four mouth movements), place the included jumper on position 4 of the JP5 pin-header of your Pixie controller. JP5 is an 8-position pin-header: two rows of 4 pins with the label JP5 printed next to the first position of the pin-header. A jumper is small black plastic block with metal insert that slides over two pins in opposite rows of the pin-header. (Instructions with pictures will be sent with your purchase.)

If the jumper is removed and a sequence contains effects for both a V1 face and a V2 10-mouth face, the singing face will follow the 10-mouth face sequencing by default.

Click for more info
