One, Two, Three or Four 30 Amp CTB16PC ReadytoGo 16 channel light controllers
Light-O-Rama Mini Director with MP3 Player (1 Network) OR Light-O-Rama N4-G4 Director (4 Networks) with MP3 Player
(N4-G4 required for "no-customer-computer-modifications-required" use with RGBPlus sequences and CPC Packages)
Blank 32gb SD card
FM transmitter ( 150' range )
ShowTime Suite Standard License (with Basic STC) or Pro License (with Upgraded STC)
USB485-HS Adapter and USB filtered cable
One 50' BLACK Cat5 cable per controller
This package gives you all the hardware you need for a first-year basic 16 channel show for Christmas, Halloween, or any other event (just use your own lights / props!). With this package, you can add on an additional three 16 channel controllers (for a total of four) If you want more controllers so you can add in your own extra sequencing, just add more controllers to your cart.
You CANNOT connect pixel lights to the plugs on the controller/s in this package. These controllers are for standard incandescent or LEDs ONLY. These controllers CAN be used in the same show or on the same network as RGB pixel controllers - just connect these controllers and RGB controllers together using Cat5 cable! Please view the specific instructions regarding CPC Package and RGBPlus Layout sequence configuration if you plan to use our default layout.
With the included software license, you can create your own light show to any song you choose (called a "sequence"). If you're not interested in sequencing on your own, after you add the Showtime Central Starter Package to your cart, just add one of our six Showtime Central SD card playlists (like the Signature Series TSO card) and you'll have a ready-to-play light show when your package arrives; just insert the SD card into your Director after you install your lights and connect them to your controller/s.

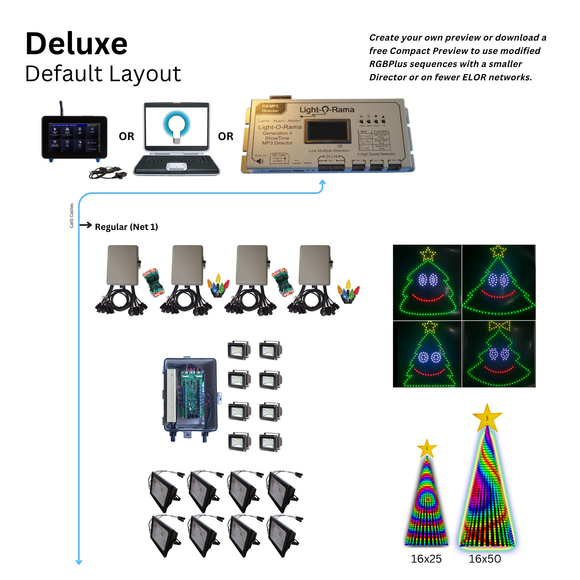

A Showtime Mini Director (1 Network) is included with this package and works with the "Deluxe Layout" SD Cards. In order to use RGBPlus Sequences, you may need a larger director (N4-G4 Upgrade) depending on the number of smart pixel props you include in your display. Learn more by clicking here.
Light-O-Rama Showtime residential high voltage AC light controllers can make lights do amazing tricks. Think of the light dimmer switch as you enter a room and how it controls one electrical circuit. Multiply that circuit by four, eight or 16 and imagine the lighting possibilities. Now put all those dimmers in a box and use a computer to control everything. Each circuit can blink, twinkle, ramp up/down or take on just about any effect you desire. Go to the next level and start linking more controllers together in a Light-O-Rama data network and imagine the possibilities of everything being synchronized. When you’re ready to really dazzle your audience, add music and/or video and your lights will dance creating an unforgettable show.
Compatible Lights
These residential controllers are designed for 110-240VAC environments typically meaning if you can plug the lights into a wall socket you can plug them into our controller. Most incandescent and LED based lights will work fine. Make sure the lights are rated to fade or dim in order to take advantage of all of our capabilities. We do not recommend using non-dimmable lights.
Durability and Usage
Light-O-Rama manufactures the residential series of high voltage AC light controllers geared forlighter duty applicationssuch as home use or environments not needing commercial grade equipment. Available in 4 and 16 channel configurations, each residential high voltage AC light controllers unit is encased in a PVC enclosure designed for long life. When mounted correctly, the controller will provide a weatherproof environment to keep the control circuitry functioning in almost any typical outdoor condition. We do suggest common sense usage and keeping the cable access holes pointing down so the entire enclosure can shed the rain. We also recommend the pigtail power outlets be at least one foot off the ground. Keep the unit away from heavy splashing water and forced water flows such as from irrigation sprinklers.
Amperage Capacity
For a 30 amp controller, each side of the CTB16PC (channels 1-8 and channels 9-16) can handle 15 amps of AC power in total. Any one channel circuit can handle up to eight (8) amps of AC power. This means that if you connect 8 amps worth of lights to channel 1, channels 2-8 (the remaining channels on that side) can only contain another 7amps combined (8+7=15).
Residential high voltage AC light controllers plug directly into wall plugs and we recommend these be dedicate power circuits for power hungry applications. Our 30 amp units require two independent 15 amp power feeds. If you have more than 15 amps of power (via your light strands) connected to your controller in total (not per side), you must plug the two power cords of the CTB16PC into DIFFERENT outlets.
For more detailed information about amperage capacity, click here.
How many CTBPC16s per network?
Multiple residential high voltage AC light controllers can be connected to the same Light-O-Rama data network. See some examples of atypical networklayout and how you can combine traditional lights and pixels into the same show! Each AC controller has a unique location code (a "Unit ID") set by your personal computer so it knows when to respond to commands. 240 CTB16PC controllers can function on the same Light-O-Rama data network giving you the ability to independently command almost 4000 channels (aka, anything you separately plug in, like a section of a leaping arch, LED snowflakes, or icicle lights on your roof). If you need more channels, just add another network.
What else can you do with residential Ready-To-Go high voltage AC light controllers? By attaching one of ourShowTime Directorsto the Light-O-Rama data network, you can have a stand-alone system of synchronized lights (no PC needed for control).
Unit IDs:Up to 240 AC controllers (or one-unit-ID controllers) in a single Light-O-Rama data network
Fading:1024 levels used for smooth fading effects. Fades from 0.1 to 25 seconds
Dimming:100 levels (0%…100%), custom curves for LEDs for smooth dimming
Already have a communications infrastructure using DMX-512 typically used in the entertainment industry? We’ve got you covered. Light-O-Rama light controllers are smart enough to analyze the type of data network they are connected to and adapt to DMX-512 if needed. Depending on the unique network assigned to your Light-O-Rama controller, it will occupy that DMX-512 address plus the next 15 (for a 16 channel controller.) The control channels (depending on the controller) must be in the same DMX-512 universe. (Like DMX Universe 1, circuits 1 through 16)
Sequencing
What do you need to get your residential high voltage AC light controllers to flash your lights to music? If you’re the creative type our ShowTimeSequencing Suiteprovides all the tools needed to create your own incredible show. If you don’t have the time or inclination to create your own shows, we have plenty of off-the-shelf songs already sequenced to lights in oursequence store.
