Name: Compact Layout - Holiday Headquarters
Brand: Light-O-Rama
SKU: CL-HolidayHQ
Availability: InStock

Description Configuration How to Use

Holiday Headquarters

This Compact Preview includes the following props in the layout:

4×

RGB Singing Bulbs

1×

RGB 32×50 Singing Matrix

1×

RGB Tree 32×50

1×

RGB Star Topper
for 32×50 Tree

4×

RGB Roofline Segments

4×

RGB Windows / Frames

40×

RGB Pixel Stakes*

8×

RGB Mini Arches*

4×

RGB Large Arches*

4×

RGB Snowflakes*

4×

RGB Spinners*

8×

RGB Candy Canes*

8×

RGB Mini Trees*

4×

RGB Lollipops*

8×

RGB Wrapped Candies*

8×

RGB Presents

8×

RGB Ornaments*

8×

RGB Verticals / Columns

2×

RGB Crystal Snowflakes

1×

RGB Diamond Mandala

What You'll Need to Get Started

In addition to your preview and sequences, the following are required to play back your show:

Pro Software License — Required for show playback. Learn more about features →
USB Adapter and/or Director — Depending on which networks your show uses.
Pixel Extensions / CAT5 Cables — Depending on your physical layout, available as add-ons in every CPC package

Looking for a simple starting point? A Starter Package Add-On bundles the control essentials to streamline your shopping list. View Packages →

Why Compact Previews?

Pixel Bright is our largest layout, and it's built to grow with you. Most customers start with a subset of props and add more each season. Compact Previews are pre-built, modified versions of the full Pixel Bright layout, sized to fit a range of common prop collections, with networks pre-configured for a 1, 2, or 4 network show.

If you're new to Pixel Bright, Compact Previews are the fastest path to your first show. We've done the network math for you: each preview has props pre-assigned to networks within recommended capacity limits. Find the one that best matches the props you want to include, download it, and prep your show.

Compact Previews take care of the initial setup work so you can get your show ready faster. But as your display grows, building your own custom preview is the best way to make your layout truly reflect your actual setup. Learn more about building your own preview →

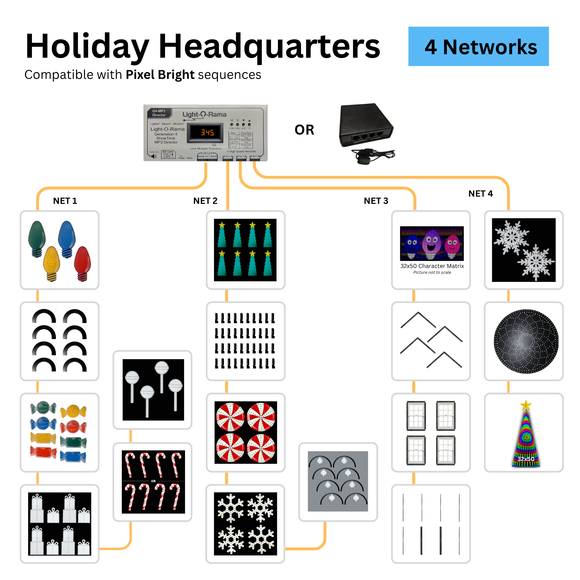

AC / RGB Prop Controller Setup

Unit ID and network settings for each controller in the Holiday Headquarters Compact Layout.

Included prop	Unit ID range	Network (Computer / Director)
4 RGB Singing Bulbs	38-3F	Reg / Net 1
RGB 32×50 Singing Character Matrix	A1-B0	Aux B / Net 3
RGB Tree 32×50	70-7F	Aux C / Net 4
RGB Star Topper for 32×50 Tree	80	Aux C / Net 4
4 RGB Roofline Segments	82-85	Aux B / Net 3
4 RGB Windows / Frames	86-89	Aux B / Net 3
8 RGB Verticals / Columns	50-57	Aux B / Net 3
40 RGB Pixel Stakes	15-19	Aux A / Net 2
8 RGB Mini Arches	11-14	Reg / Net 1
4 RGB Large Arches	58-5F	Aux A / Net 2
8 RGB Mini Trees	09-10 Spanning 0A-0F	Aux A / Net 2
4 RGB Snowflakes	19-1C	Aux A / Net 2
2 RGB Crystal Snowflakes	4C-4F	Aux C / Net 4
4 RGB Spinners	1D-20	Aux A / Net 2
RGB Diamond Mandala	48-4B	Aux C / Net 4
4 RGB Candy Canes	21-24	Reg / Net 1
4 RGB Lollipops	64-67	Reg / Net 1
4 RGB Lollipops + 4 RGB Candy Canes	60-67	Reg / Net 1
8 RGB Wrapped Candies	68-6F	Reg / Net 1
8 RGB Presents	8C-8F	Reg / Net 1
8 RGB Ornaments	58-5F	Aux A / Net 2
8 RGB Ornaments + 8 RGB Large Arches	58-5F	Aux A / Net 2
MegaPackSnowflakes + Spinners	19-20 Spanning 1A-1F	Aux A / Net 2
MegaPackCrystal Snowflakes + HD Diamond Mandala	48-4F	Aux C / Net 4
CandyPackWrapped Candies + Lollipops + Candy Canes	60-6F	Reg / Net 1
