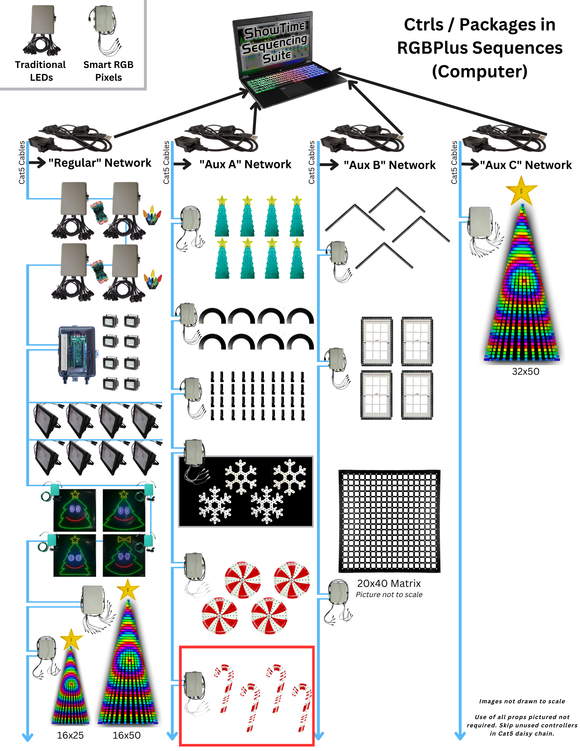

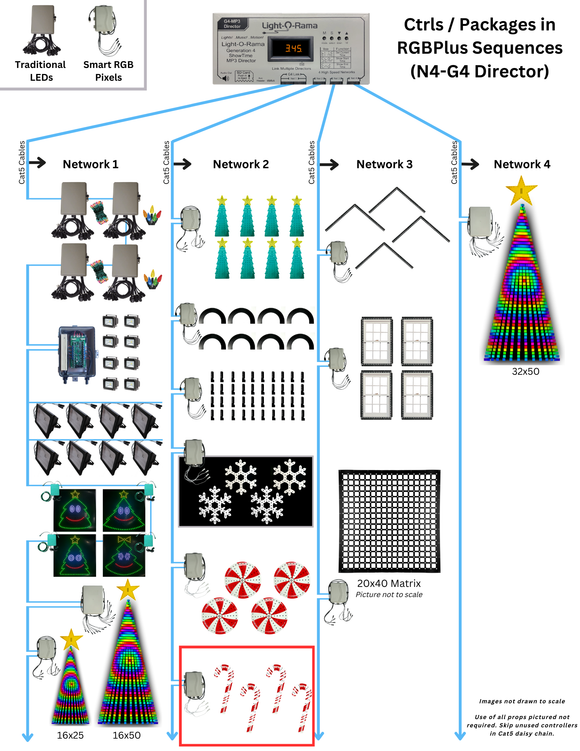

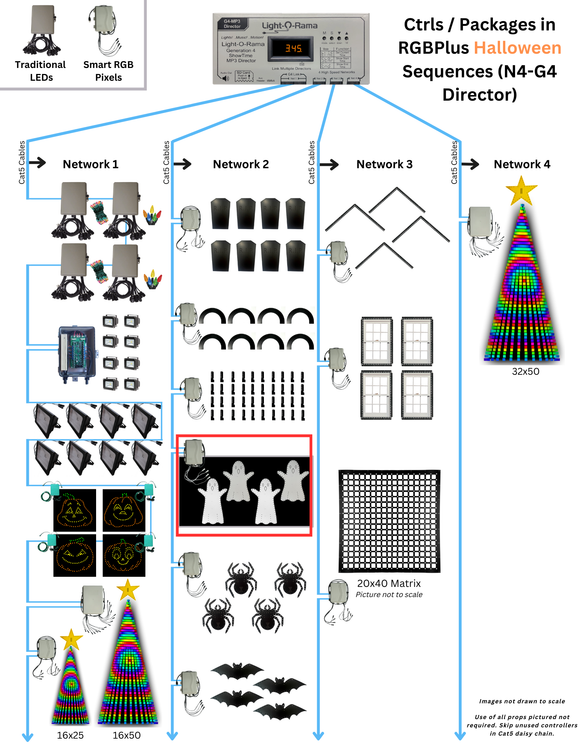

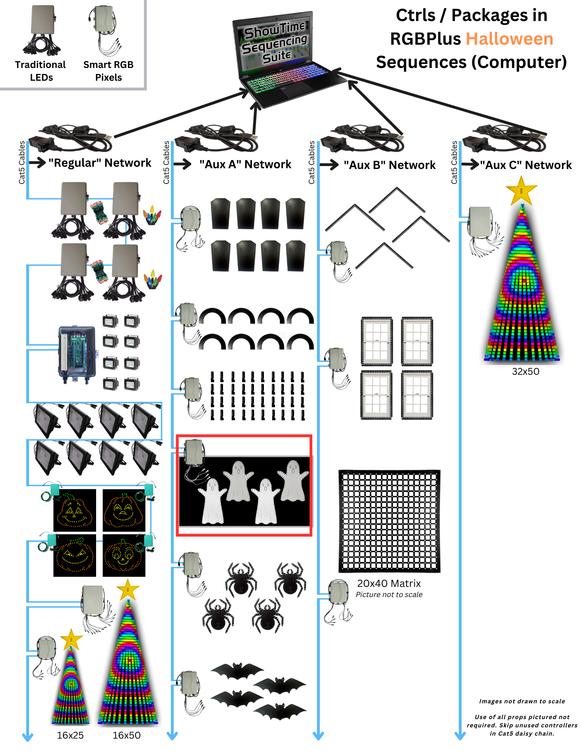

For non-modified use with RGBPlus sequences, the controller in this package must be connected to Network Aux A/Network 2. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
This package allows you to "Swap a Prop" depending on the holiday. (These 8 props are not meant to be used all at one time in the same display.) Use your 4 Ghosts at Halloween then change out to your 4 Candy Canes at Christmas, using the same Pixie4 controller and optional extensions.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S6.2.0 or higher is recommended for easiest use for personal sequence creation; a Pro license level is required to use Pixel Motion Effects. RGBPlus sequence requirements are listed per purchase page.
The Assembled Pixie4 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell LRS-150-12 - 120/240V input (User Selectable) - 12V - 12.5A output - with extended temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

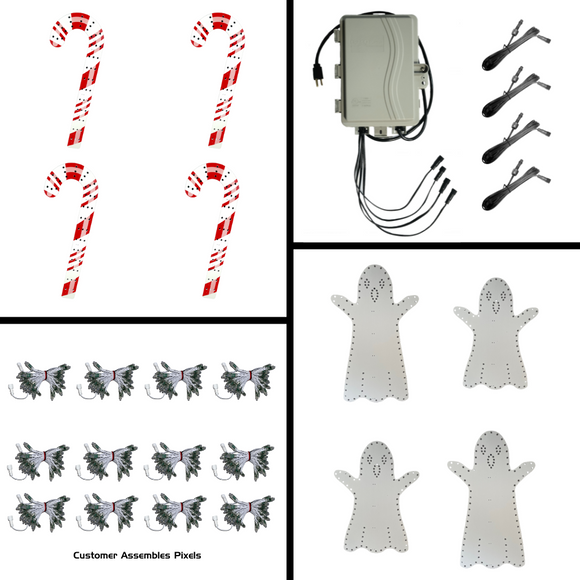

Included in this Package:

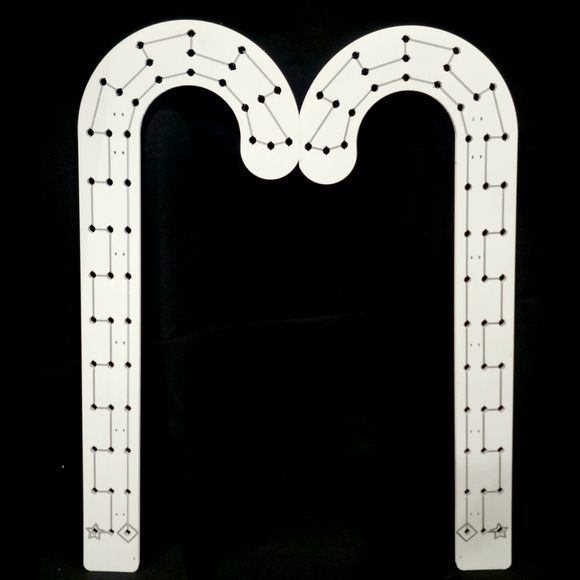

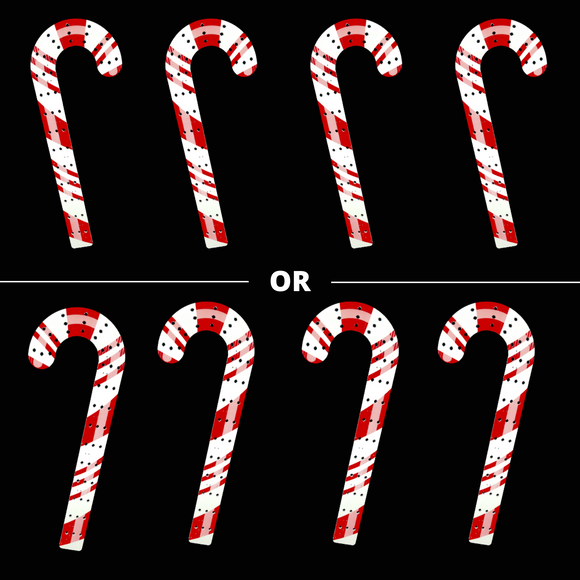

- 4 Coro Candy Canes - 48 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
- Approx. 36" tall
- 10mm White Coro with Red Stripes

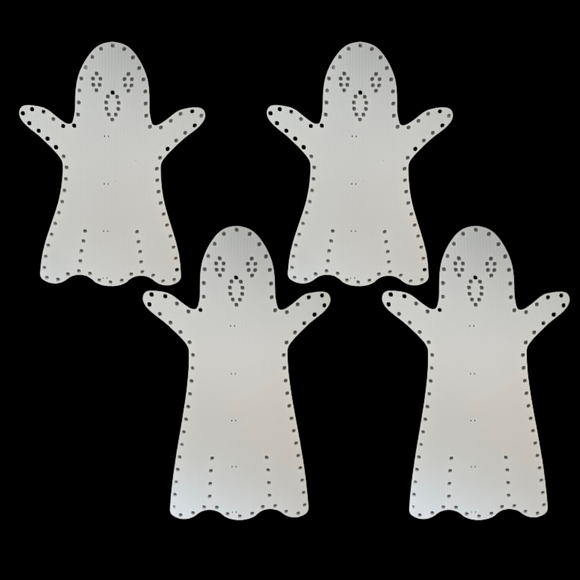

- 4 Coro Ghost - 2 Big and 2 Small - 100 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
- Big Ghosts (2) - 37" tall x 23.5" wide
- Small Ghosts (2) - 30" tall x 23.5" wide
- 10mm White Coro

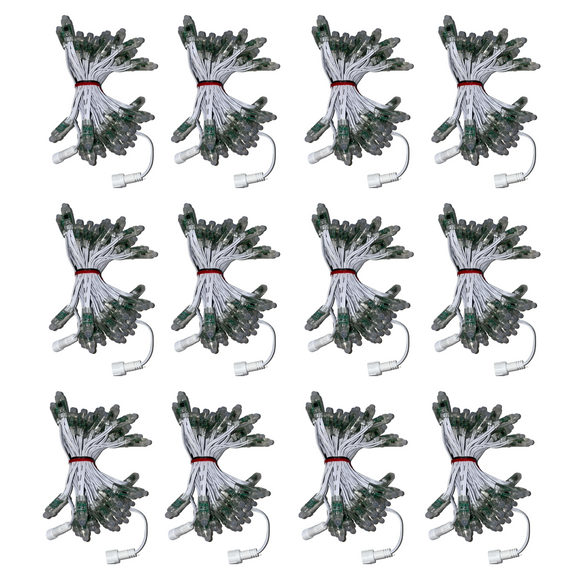

- 12 Strands of White Bullet Pixels - 50 Ct (4" spacing). LOR end connectors.
- Pixie4 Controller - Assembled -12V - With Black LOR Dangles Included
Optional Additions:
- 4 Pixel Extensions - Black (10ft)
- Cat5 Cable (50ft)
Not Included:
- Mounting material for home attachment
- Metal stakes or other ground mounting material
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. To incorporate more than 4 of these props into your custom sequenced display, visit our collection of Prop Packages so you can use the Pixie controller that best suits your needs.
Purchases outside the United States and Canada are assembled with an internationally approved and UL listed: MeanWell RSP-150-12 - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extended temperature operating range.
Package Assembly
Pixels are not pre-pushed. Assembly is to be completed by the customer following the directions shipped with this package.
The ghosts in this package are interchangeable. Any size can plug into any of the 4 ports.
Mount the props to your home or in your yard using standard ground stakes, zip ties, PVC or other mounting material of your choice.
