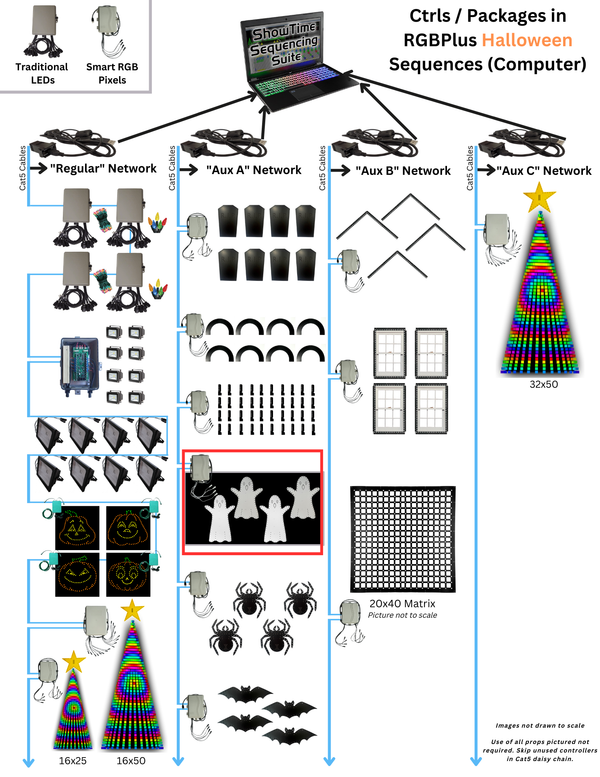

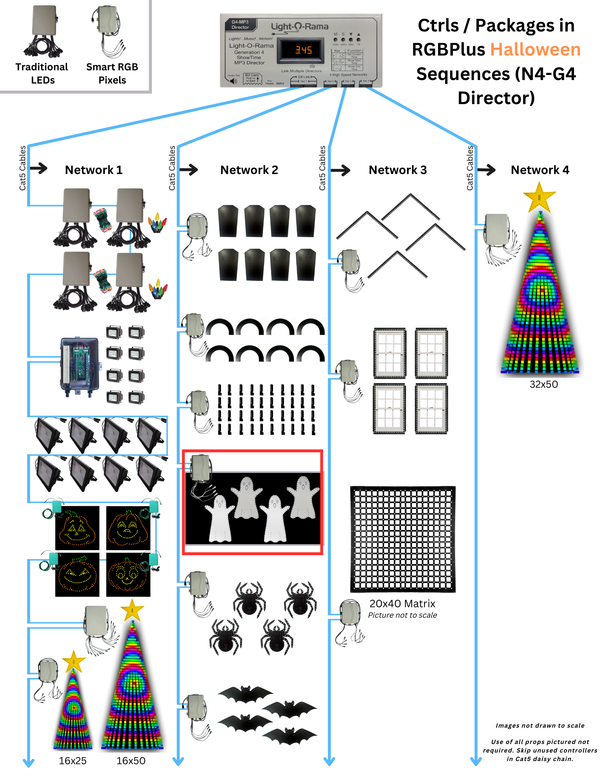

For non-modified use with RGBPlus Halloween sequences, the controller in this package must be connected to Network Aux A/Network 2. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.
The Assembled Pixie4 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell RSP-150-12 - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extend temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.
Included in this Package:

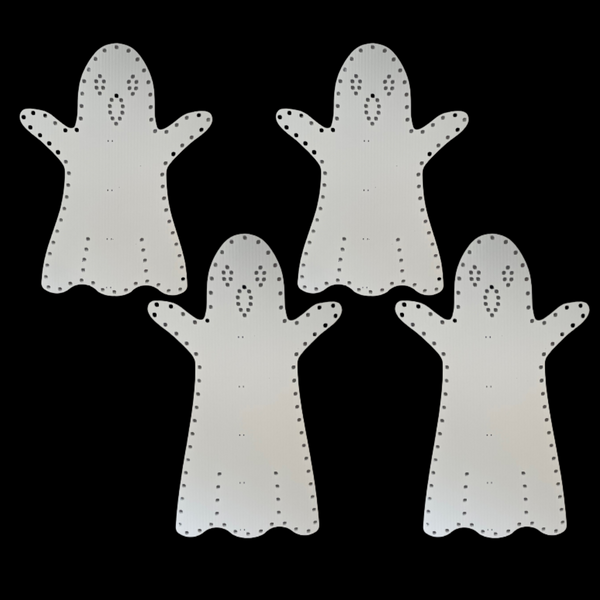

- 4 Coro Ghost - 2 Big and 2 Small - 100 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
- Big Ghosts (2) - 37" tall x 23.5" wide
- Small Ghosts (2) - 30" tall x 23.5" wide
- 10mm White Coro

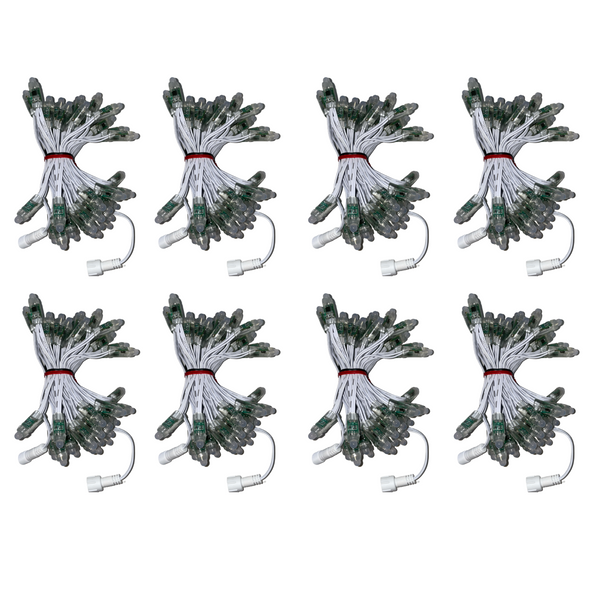

- 8 Strands of White Bullet Pixels - 50 Ct (4" spacing) - To make 4 sets of 100
- Pixie4 Controller - Assembled -12V - With LOR Dangles Included
Optional Additions:
- 4 Pixel Extensions - White (5ft, 10ft, 15ft, or 25ft)
- Cat5 Cable (10ft, 25ft, 50ft, or 100ft)
Not Included:
- Mounting material for home attachment
- Metal stakes or other ground mounting material
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. To incorporate more than 4 Ghosts into your custom sequenced display, visit our collection of Prop Packages so you can use the Pixie controller that best suits your needs.
If you want more than 4 Ghosts but still want to use our RGBPlus Sequences, just put multiples of this kit into your cart and make sure each controller uses the SAME Unit IDs when you set up your display. Read more about our sequences in the RGBPlus Sequence tab.
Package Assembly
Pixels are not pre-pushed. Assembly is to be completed by the customer.
When viewing the ghosts from the back, the Pixel Path "star" (for "start") should be at near the bottom left of the prop, with the pixel path continuing clockwise until it reaches the "square" (for "stop") on the bottom of the prop.
The ghosts are interchangeable in size - any size ghost can be plugged into any port of your Pixie4 Controller.
Mount the props to your home or in your yard using standard ground stakes, zip ties, PVC or other mounting material of your choice.
What can your display look like with our CPC Packages? Take a look!
