What can your display look like with our CPC Packages? Take a look!
For non-modified use with RGBPlus Halloween sequences, the controller in this package must be connected to Network Aux A/Network 2. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.
The Assembled Pixie8 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell RSP-320-12 - 120/240V input - 12V - 26.7A output - with Power Factor Correction and extend temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.
Included in this Package:

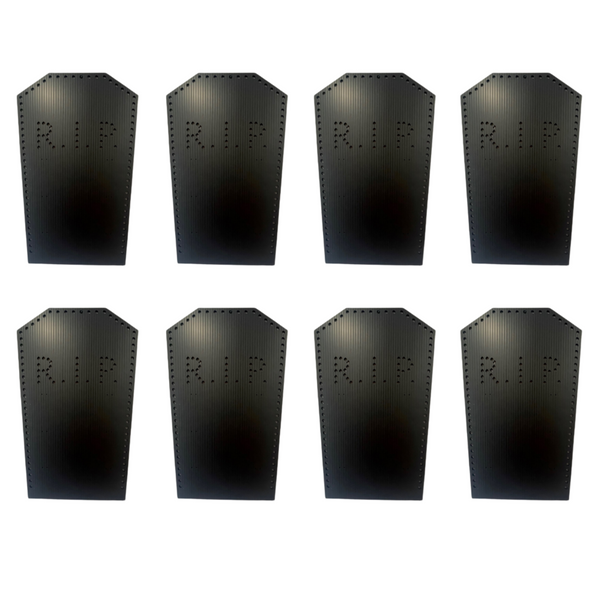

8 RIP Tombstones - 100 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
31" tall by 19" wide
10mm Black Coro

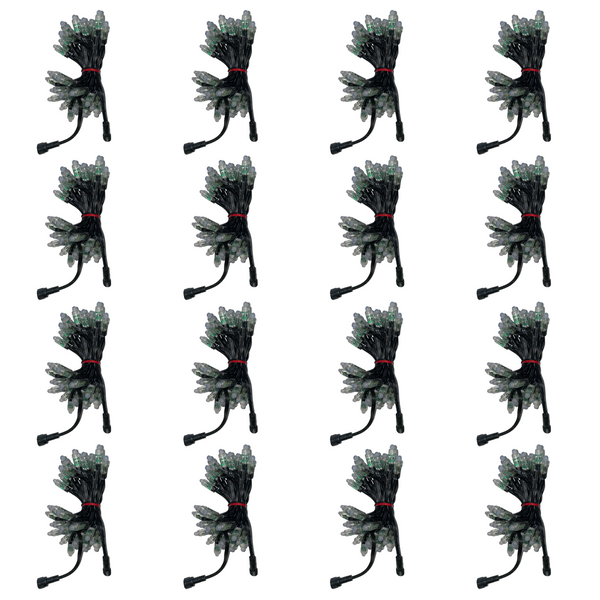

16 Strands of Black Bullet Pixels - 50 Ct (4" spacing). Two strands of 50 should be connected together per prop.

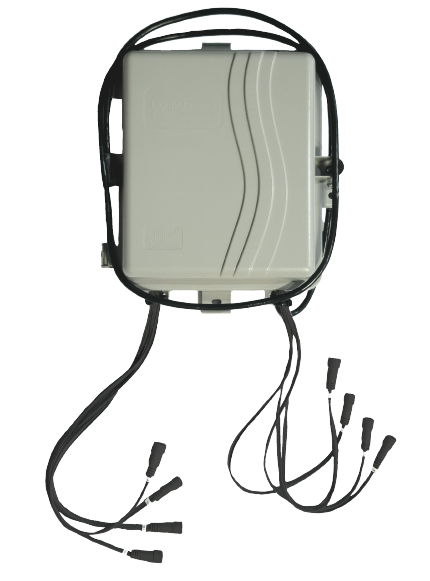

Pixie8 Controller - Assembled -12V - With LOR Dangles Included
8 Pixel Extensions - Black (5ft, 10ft, 15ft, or 25ft)
Cat5 Cable (10ft, 25ft, 50ft, or 100ft)
Mounting material for home attachment
Metal stakes or other ground mounting material
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. To incorporate more than 8 RIP Tombstones into your custom sequenced display, visit our collection of Prop Packages so you can use the Pixie controller that best suits your needs.
If you want more than 8 RIP Tombstones but still want to use our RGB Plus Sequences, just put multiples of this kit into your cart and make sure each Pixie controller uses the SAME Unit IDs when you set up your display. Read more about our sequences in the RGBPlus Sequence tab.
Pixels are not pre-pushed. Assembly is to be completed by the customer.
When viewing the Tombstone from the back, the Pixel Path "star" (for "start") should be on the bottom right of the prop, with the pixel path continuing up and around the tombstone until it continues into the star and reaches the "square" for "stop."

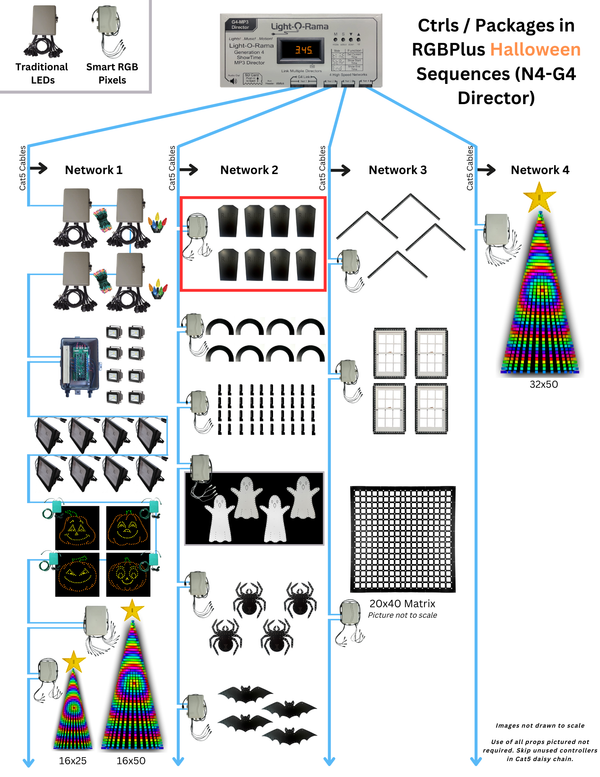

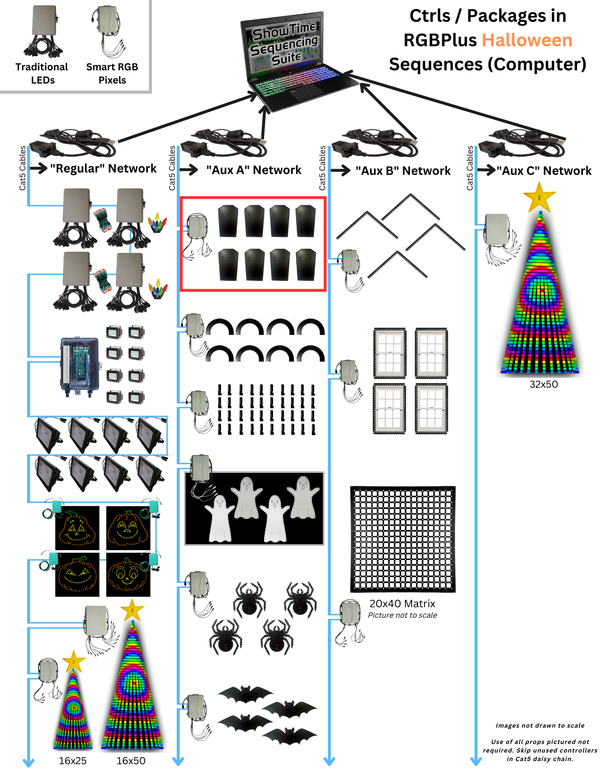

To use the RIP Tombstone CPC Package with our RGBPlus Sequences, the Pixie8 controller in this package must be connected to the AuxA network on your computer or Net 2 of your N2-G4 or N4-G4 Showtime Director. The Pro license level is required to play RGBPlus sequences. The software version required is listed on each RGBPlus sequence purchase page.
When viewing the tombstones as the audience, the 1st tombstone should be on the left in a row and the 8th tombstone should be on the right. When viewing the Tombstone from the back, the Pixel Path "star" (for "start") should be on the bottom right of the prop, with the pixel path continuing up and around the tombstone until it continues into the star and reaches the "square" for "stop."
The Pixie8 should be given a base Unit ID of 09; The eight Unit IDs for the eight ports of this Pixie8 controller (and therefore your RIP Tombstones) must be 09, 0A, 0B, 0C, 0D, 0E, 0F, and 10, both physically on your controller and in your Preview,which correspond to ports 1, 2, 3, 4, 5, 6, 7, and 8 of your Pixie8. Learn how to set the Unit ID of your Pixie controller using DIP switches by clicking here.
Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
