Prop Package (No Controller) - 20x40 Matrix

SKU: CPnoctrl-Matrix20x40

Prop Package for an 800 pixel Matrix (20x40) {Controller Not Included}. Use this package in your own sequences or with our RGBPlus Sequence Layout (coming October 2022).

$499.95

Shipping calculated at checkout

Default Title
(D#07I7BUB)
Current processing time for an order containing this item is 2 to 4 weeks. The item will ship after it is processed.

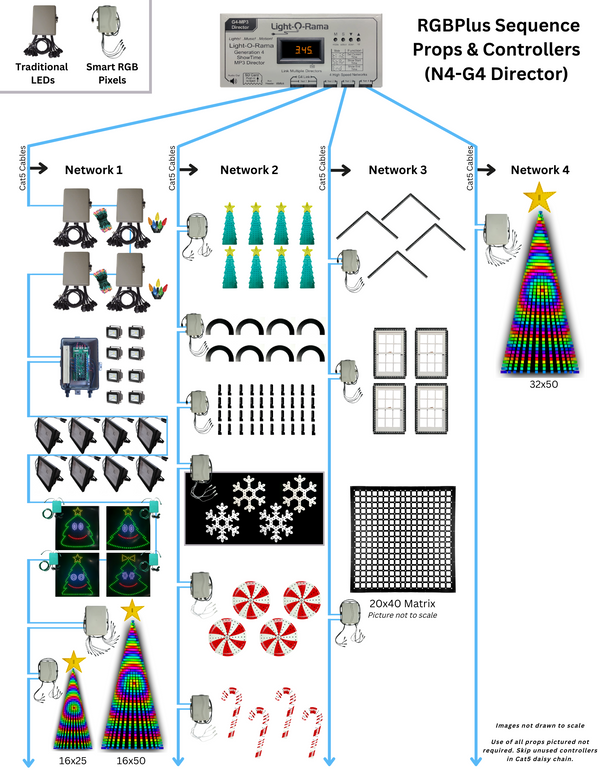

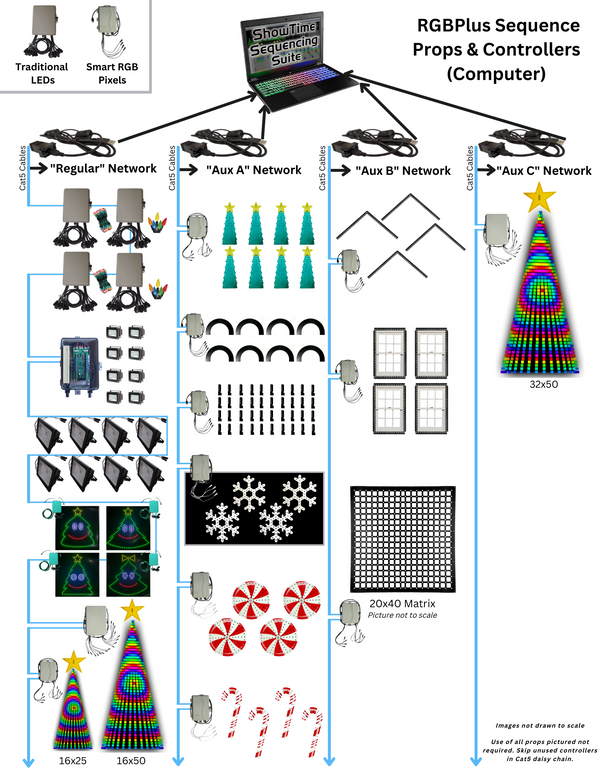

Our Prop Packages include the Coro and Pixels you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show. The props in this package must be assigned to specific Unit IDs in order to work with our RGBPlus sequences.

S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.

Included in this Package:

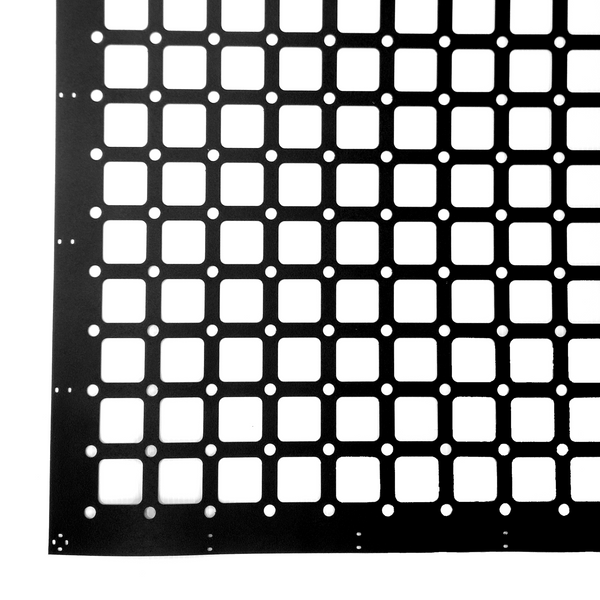

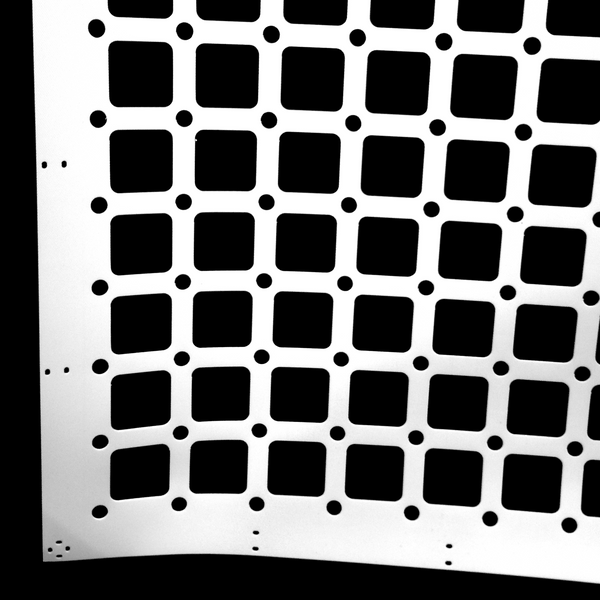

  • 1 Sheet of Matrix Mesh (Black or White) - 800 Pixels (20hx40w)
    • Approx. 4' by 8' (46" by 92")
    • 2.3" spacing

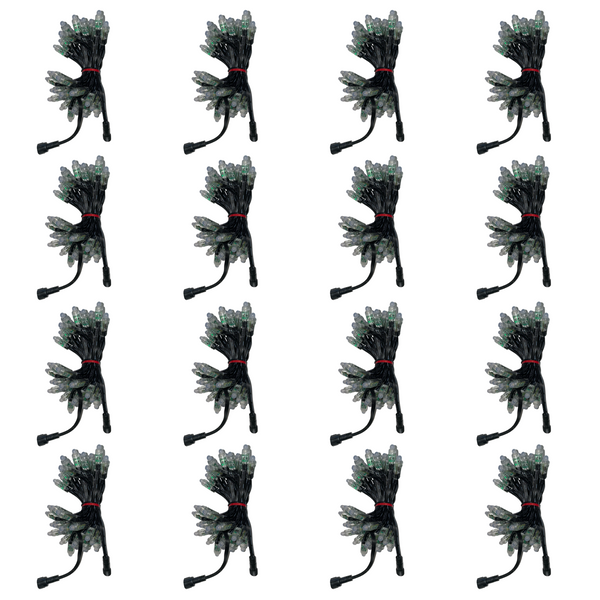

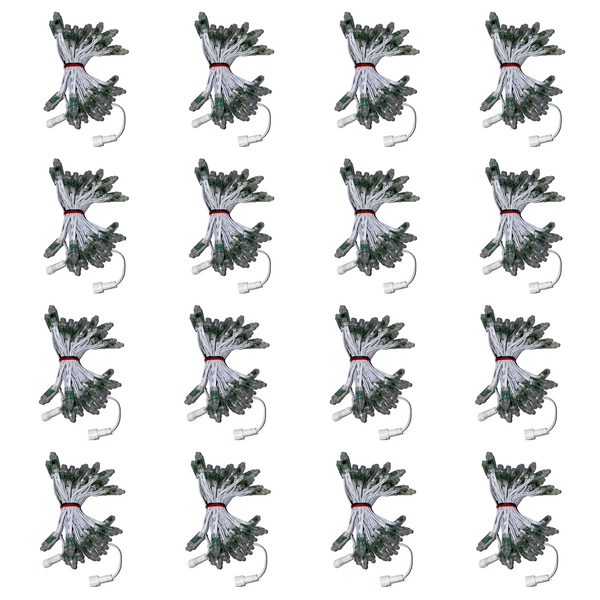

  • 16 Strands of White or Black Square Pixels - 50 Ct (4" spacing). Two strands should be connected to form strands of 100, connected to 8 total Pixie outputs.
    • Dangles not included. The controller you use needs dangles installed.

Optional Additions:

  • 8 Pixel Extensions - Black or White (5ft, 10ft, 15ft, or 25ft)

Not Included:

  • Mounting material for home attachment
  • Mounting surface for stabilization/straightness

Our Prop Packages (No controller) can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. If you're looking for a package with the controller included, consider purchasing a CPC Kit  (Coro, Pixels, Controller) instead.

Kit Assembly

Pixels are not pre-pushed. Assembly is to be completed by the customer.

When viewing the Matrix Mesh from the back, the first pixel of the first port should begin on the bottom right and continue UP the section of 20 nodes. When viewing as the audience, the first pixel should be on the bottom left. Each strand of 100 should fold in a vertical pattern to create 5 columns in the matrix. The strands of 100 should start at the bottom of columns 1, 6, 11, 16, 21, 26, 31, and 36. Horizontally pushed strands (80 long, remainder 20), are NOT useable with standard Matrix Shapes in the S5 Sequencer/Preview Editor.
