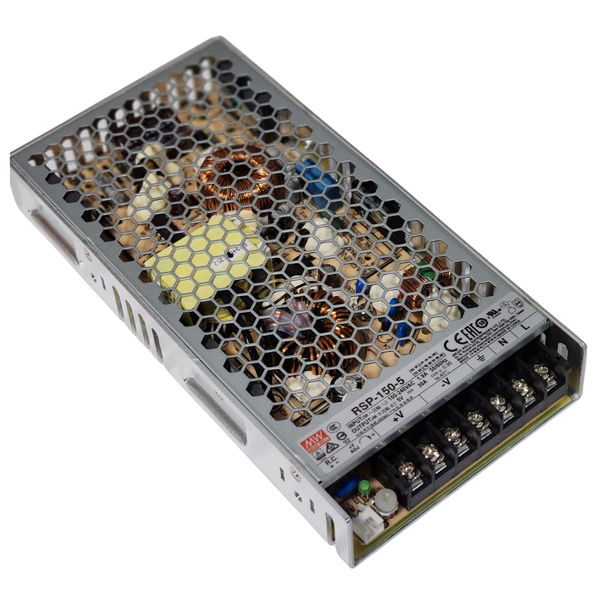

Meanwell RSP-150-5 Power Supply - GARAGE SALE

SKU: PS-RSP-150-5V


5V Power Supply for DIY Pixie4 builds

$79.38

Shipping calculated at checkout

This item will be ready to ship in 3-5 business days. Once shipped, delivery time depends on the method you choose at checkout. Orders are packed in the order they are placed, regardless of the shipping method you select.

Description

5Vdc /30A, 5Volts Power Supply Low Profile, PFC 5V 30A, 150 Watts

Product Specs

  • Manufacturer: MEAN WELL USA Inc.
  • Model: RSP-150-5 (150W)
  • Input Voltage: 85~264Vac
  • Output Voltage: 5Vdc
  • Output Max Current: 30 Amps
  • Max Power: 150 Watts
  • Voltage - Isolation: 4 kV
  • 30mm low profile design for 1U installation
  • Fan-less design, cooling by free air convection
  • Built-in constant current limiting circuit
  • Operating Temperature: -30°C ~ 70°C (With Derating)
  • Size / Dimension: L: 7 7/8" W 3 7/8" H: 1 1/4"
  • Safety approvals: UL 62368-1 & TUV EN 62368-1-1

Not recommended for use with the Pixie8, Pixie16 or Aurora Core.

Datasheet

All sales are final for garage sale products. No returns or refunds.
