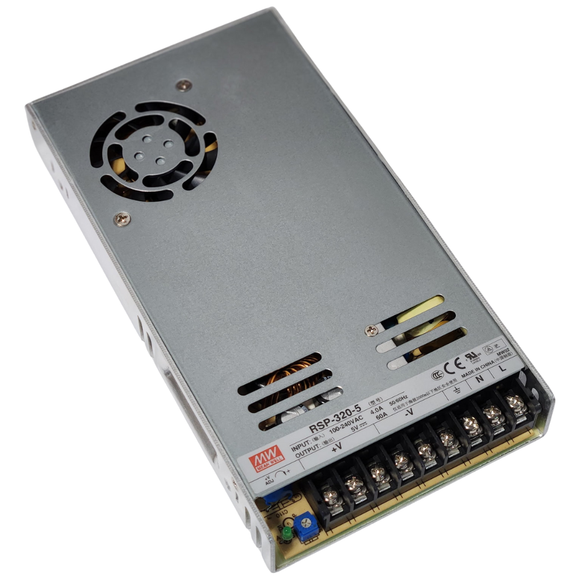

5Vdc 60A, 5Volts Switching Power Supply PFC, Low Profile 5V 60A, 320 Watts
Product Specs
- Manufacturer: MEAN WELL USA Inc.
- Model: RSP-320-5 (300W)
- Input Voltage: 88~264Vac
- Output Voltage: 5Vdc
- Output Max Current: 60 Amps
- Max Power: 300 Watts
- Universal AC input range: 88~264Vac
- Operating temperature range: -30~+70°C
- Safety standard: UL62368-1
- Forced air cooling by built-in DC fan with fan speed control function
- 30mm low profile design for 1U installation
- LED indicator for power on
- Dimensions: L: 8 1/2" W: 4 1/2" H: 1 1/8"
- Protections: short circuit / over load / over voltage / over temperature
Not recommended for use with the Pixie4, Pixie16 or Aurora Core.
