CPC Package - 4 Lollipops (Pixel Bright)

Overview

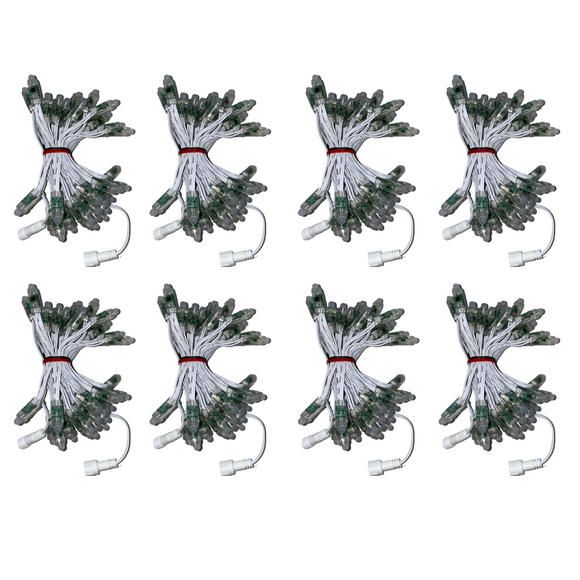

"CPC" Packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. One Cat5e or Cat6 cable is required per controller to connect to a network. Pixel Extensions are needed to reach from the ports of the controller to the first light on each prop. On average, dangles on Pixie controllers reach 11"-16", and there is 4" of wire from the first pixel on a strand to the connector.

Prop Packages do not include a controller, extensions, or Cat5e cable. Only the coro props and pixels are included. Use these packages to customize your layout/preview and be able to use different controllers, or pack multiple / duplicates of props per controller port. Using software version 6.5.0 allows for double unit ID mode on Pixies.

CPC Packages and Prop Packages can also be used in a display with custom sequencing, as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network. For custom preview inspiration, check out our free Compact Layouts.

Network limits and playback speed are important components of designing a light show. Learn important information about ELOR, DMX, and E1.31 by visiting this page. Learn more about installing sequences or modifying default networks here.

Software is not included with this purchase. A free Basic license can control up to 680 pixels. A Pro license unlocks full pixel and traditional LED control. Version S6.2.0 or higher is recommended for easiest use when creating your own sequences; buffer rows were introduced as new Motion Effect Row types in S6.5.0 for even more advanced effect options.

CPC Packages are NOT compatible with Traditional Layout Sequences. The only pixel effects in the Deluxe Layout (SD Card) are for a 16x25 Tree, 16x50 Tree, and 4 Legacy Singing Trees.

Prop Assembly

Pixels are not pre-pushed into these props. Assembly is to be completed by the customer. A Quick Guide of specific instructions is included with each CPC package. In general, props should be arranged left to right or top to bottom when viewed as the audience to best match pre-programmed sequencing effects.

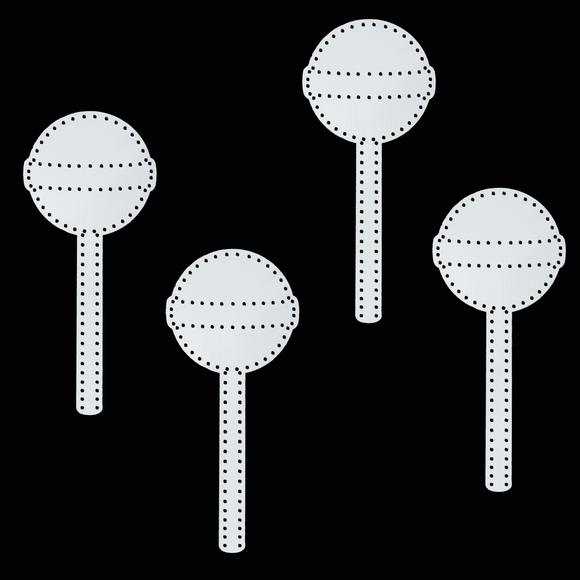

When viewing a 10mm coro prop from the back, locate the silver "star" in the pixel path as the "start" of pushing your pixels. The side of the pixels with the male end (the 3 prongs) is the starting side of the strand. Follow the silver pixel path until you reach the "square" for "stop."

For single line props (arches, rooflines, windows), the pixels should be pushed right to left when viewing the prop from the back. (Left to right viewing as the audience). The Quick Guide instructions will tell you if your prop uses 25, 50, 100, or 150 pixels per port of your controller.

Mount the props to your home or in your yard using standard ground stakes, zip ties, PVC or other mounting material of your choice. Mounting material is not included with this package unless specifically stated.

Using CPC Packages with RGBPlus Sequences either requires version S5.6.8+ or S6.2.0+ for use. The required version is listed per sequence or SD card purchase page.

Default RGBPlus sequences contain effects for Traditional Lights, Singing Trees or Pumpkins, and ~6500 pixels, organized into 4 ELOR Networks. Learn more about the RGBPlus layout in detail by clicking here.

Light-O-Rama prop effects included in RGBPlus Christmas sequences:

• Four 16 Channel AC Controllers
• 4 Channels for Strobes (AC)
• Eight 10W Floods
• Eight 50W Floods
• RGB 4 Singing LOR Trees
• RGB Pixel Tree 16x25
• RGB Pixel Tree 16x50
• RGB Pixel Tree 32x50
• RGB Star Topper 18"
• RGB Star Topper 32"
• RGB 8 Mini Trees with Stars
• RGB 4 Snowflakes
• RGB 4 Spinners
• RGB 4 Candy Canes
• RGB 8 Mini Arches
• RGB 40 Pixel Stakes
• RGB 4 Rooflines
• RGB 4 Frames
• RGB 20x40 Matrix

Light-O-Rama prop effects included in RGBPlus Halloween sequences:

• Four 16 Channel AC Controllers
• 4 Channels for Strobes (AC)
• Eight 10W Floods
• Eight 50W Floods
• RGB 4 Singing LOR Pumpkins
• RGB Pixel Tree 16x25
• RGB Pixel Tree 16x50
• RGB Pixel Tree 32x50
• RGB Star Topper 18"
• RGB Star Topper 32"
• RGB 8 RIP Tombstones
• RGB 4 Bats
• RGB 4 Spiders
• RGB 4 Ghosts
• RGB 8 Mini Arches
• RGB 40 Pixel Stakes
• RGB 4 Rooflines
• RGB 4 Frames
• RGB 20x40 Matrix

To use the full Pixel Bright Layout, a high speed Pixielink adapter with your Pixies (or Aurora Core Controller/s instead of Pixies) is strongly recommended for best performance and playback. Default Pixel Bright Sequences are configured for 1 ELOR Network (for Traditional Lights and Singing Faces), and span 174 DMX universes (~17,700 pixels) for all other included CPC Packages.

The default layout is designed to be used primarily with Pixies and a Pixielink, via a Computer or Touch Player for playback. To use a modified version of Pixel Bright on an ELOR network or with a Showtime Director, create your own custom preview using our software, or download one of our free Compact Previews.

Using CPC Packages with PixelBright Sequences required version S6.6.8+ for use. Learn more about the Pixel Bright layout in detail by clicking here.

Light-O-Rama Prop Effects included in Pixel Bright Sequences:

• Four 16 Channel AC Controllers
• 4 Channels for Strobes (AC)
• Eight 10W Floods
• Eight 50W Floods
• RGB 4 Singing LOR Trees
• RGB Pixel Tree 16x25
• RGB Pixel Tree 16x50
• RGB Pixel Tree 32x50
• RGB Star Topper 18"
• RGB Star Topper 32"
• RGB 8 Mini Trees with Stars
• RGB 4 Snowflakes
• RGB 4 Spinners
• RGB 8 Candy Canes
• RGB 8 Mini Arches
• RGB 40 Pixel Stakes
• RGB 4 Rooflines
• RGB 4 Frames
• RGB 20x40 Matrix
• RGB 32x50 Singing Character Matrix
• RGB 96x50 Matrix
• RGB 8 Presents
• RGB 4 Lollipops
• RGB 8 Wrapped Candies
• RGB 8 Large Arches
• RGB 8 Ornaments
• RGB 8 Verticals/Columns
• RGB 2 Crystal Snowflakes
• RGB 1 HD Diamond Mandala
• RGB 4 Singing LOR Bulbs

Assembled Pixie controllers are included with CPC Packages. Controllers are not included with Prop Packages. An Assembled Pixie controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

Pixie power supplies are UL Listed:

• Pixie4 = MeanWell LRS-150-12 - 120/240V input (User Selectable) - 12V - 12.5A output - with extended temperature operating range.
• Pixie8 = MeanWell LRS-350-12 - 120/240V input (User Selectable) - 12V - 29A output - with extended temperature operating range.
• Pixie16 / Aurora Core = MeanWell LRS-600-12 - 120/240V input (User Selectable) - 12V - 50A output - with extended temperature operating range.

A Quick Guide will arrive with your CPC Package purchase. View the expanded manual for the Pixie Controller by clicking here.

Pixie4 Dimensions:

Enclosure Dimensions Outer = 11.85" x 8.5" x 4.25"
Enclosure Dimensions Inner = 9" x 6.15" x 3.5"

Dangle length (if included): 10.5" to 16" each (4 Total)
Power Cord: 57 1/2"

Pixie8 Dimensions:

Enclosure Dimensions Outer = 13.75" x 11.75" x 5.5"
Enclosure Dimensions Inner = 10.25" x 8.75" x 4.5"

Dangle length (if included): 11" to 17" each (8 Total)
Power Cord: 68 1/2"

Pixie16 Dimensions:

Enclosure Dimensions Outer = 15.25" x 12.5" x 6"
Enclosure Dimensions Inner = 14" x 10.25" x 5.25"

Dangle length beyond enclosure (if included):varies 5" to 11"
Power Cord: 66"

Purchases outside the United States and Canada are assembled with an internationally approved and UL listed MeanWell RSP-150-12, RSP-320-12, or RSP-500-12V - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extended temperature operating range.

Learn more about our warranty policy hy clicking here.
