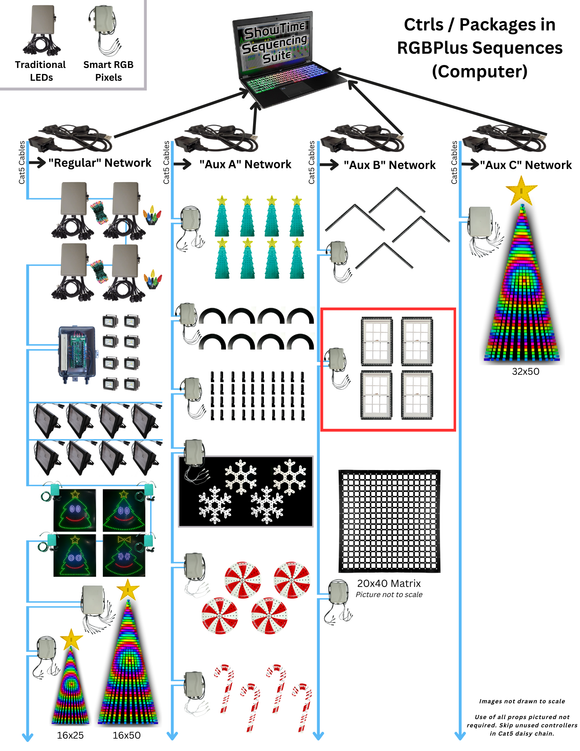

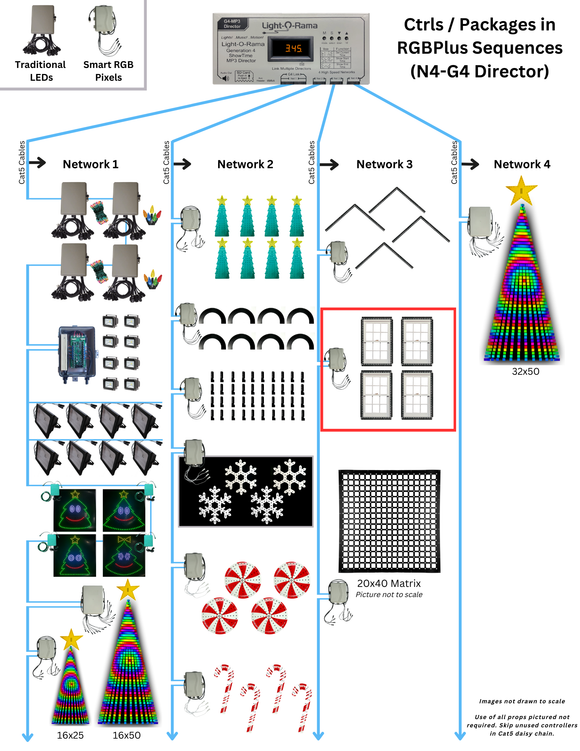

For non-modified use with RGBPlus sequences, the controller in this package must be connected to Network Aux B/Network 3. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.
Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.
S5.6.8 or higher is recommended for easiest use for personal sequence creation; a Pro license level is required to use Pixel Motion Effects. RGBPlus sequence requirements are listed per purchase page.
Use our custom calculator to help determine how many pixels you need!
Learn to edit the RGBPlus sequences to custom frame sizes by watching this video.
Included in this Package:

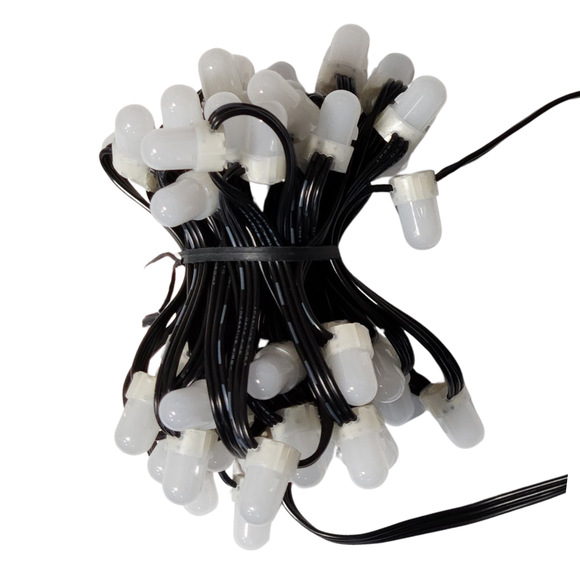

- 8 Strands of Pixels - 50 Ct (4" spacing)
- Choose Black Squares or Black LumaDomes
- Strands connect together to create 4 sets of 100
- Pixie4 Controller - Assembled -12V - With Black LOR Dangles Included
- Pixel Mounting Trim - Node Spacing 1" (White Or Black)

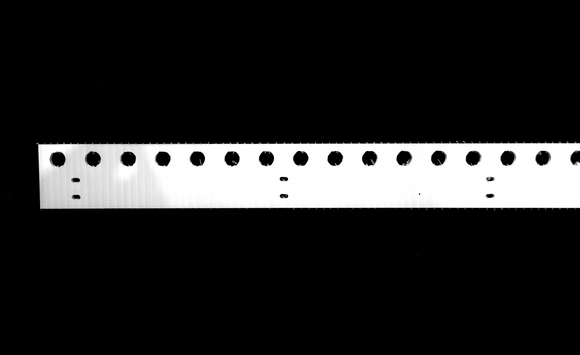

- 4mm Coro - 4' Sections (White or Black) - Easier to push pixels
- UV Stabilized Plastic - 7'9" Sections (White or Black) - More Flexible and Rigid
- Pixel Extensions - Black (4x25ft)
- Cat5 Cable (50ft)
Not Included:
- Mounting Material (Including but not limited to:)
- PVC Pipe
- EMT Conduit
- Clips or Brackets
- Zip Ties

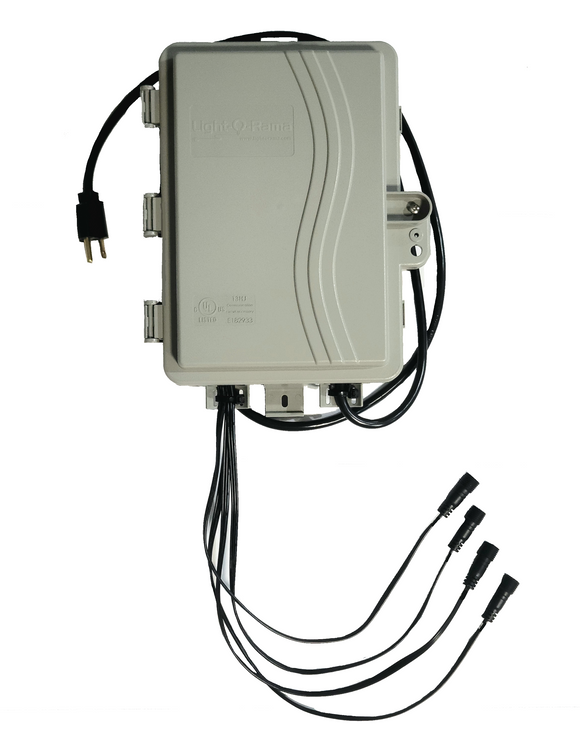

The Assembled Pixie4 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell LRS-150-12 - 120/240V input (User Selectable) - 12V - 12.5A output - with extended temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.
Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. Do not exceed 25ft of pixel extension before reaching the first pixel of a strand on each Pixie4 port for best results.

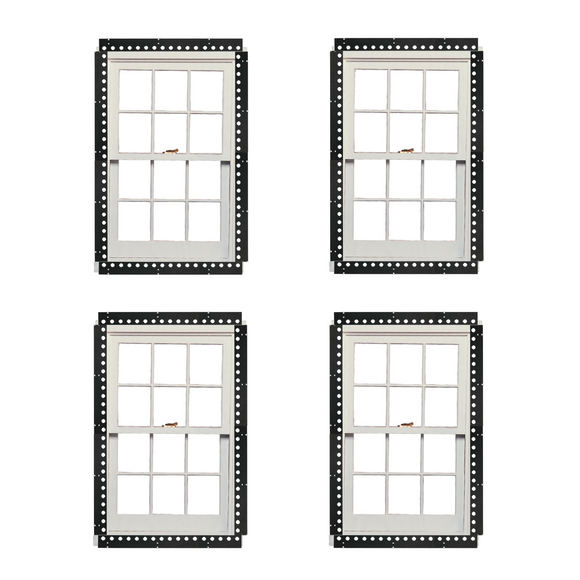

If you want more than 4 sections of 100 pixel frames (windows, railings, fences, etc.) but still want to use our RGB Plus Sequences, just put multiples of this kit into your cart and make sure each Pixie controller uses the SAME Unit IDs when you set up your display. Read more about our sequences in the RGBPlus Sequence tab.
Purchases outside the United States and Canada are assembled with an internationally approved and UL listed: MeanWell RSP-150-12 - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extended temperature operating range.
Package Assembly
Pixels are not pre-pushed. Assembly is to be completed by the customer. Select options for Pixel Mounting Trim based on 2" or 3" spacing. Pixel Mounting Trim will need to be cut and attached at the corners to create outlines for the framed elements on your home. If you need to purchase a custom length of Pixel Mounting Trim, just add more 4mm Coro Mounting Trim or UV Plastic Mounting Trim to your cart.
What can your display look like with our CPC Packages? Take a look!
