Mission Illumination - Christmas Starter Package

SKU: StarterMissionIlluminationComputer|lic-pro|USB485-HS


This starter package includes a Pro software license, RGB Mini Trees, Arches, Stakes, Snowflakes, Spinners, Roofline strips, and Mega Tree with Star, smart RGB pixel strings, extensions, and Cat5e cables. Choose a Showtime Director with FM transmitter, or USB485-HS adapters (for a computer based show).

Traditional lights and house/ground mounting supplies/frames not included. Sequences sold separately.

$3,999.95 $4,304.95 Save $305

Shipping calculated at checkout

Show Control: Computer (Customer Provided)
License: I am new to LOR; I need a license key
Current processing/packing time for an order containing this item is 1-3 business days. The item will ship using your chosen shipping method after it is processed.

Included Items Light Show Playlist Controller Details RGBPlus Sequences User Manual Warranty

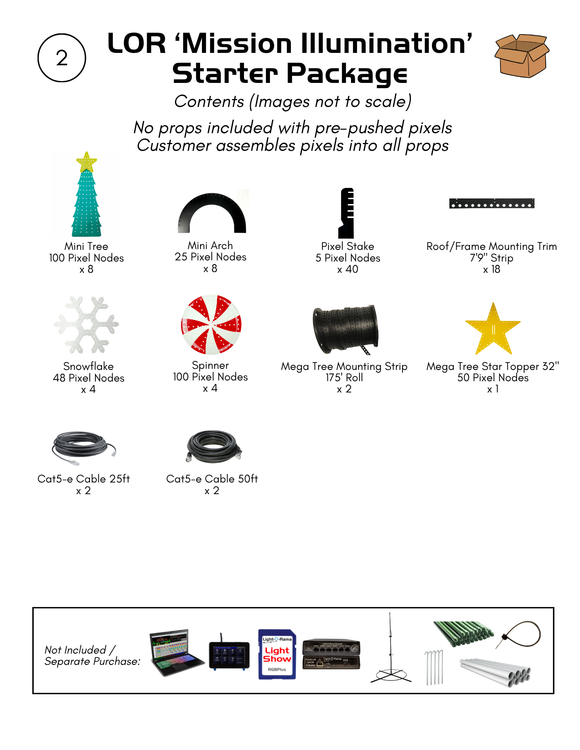

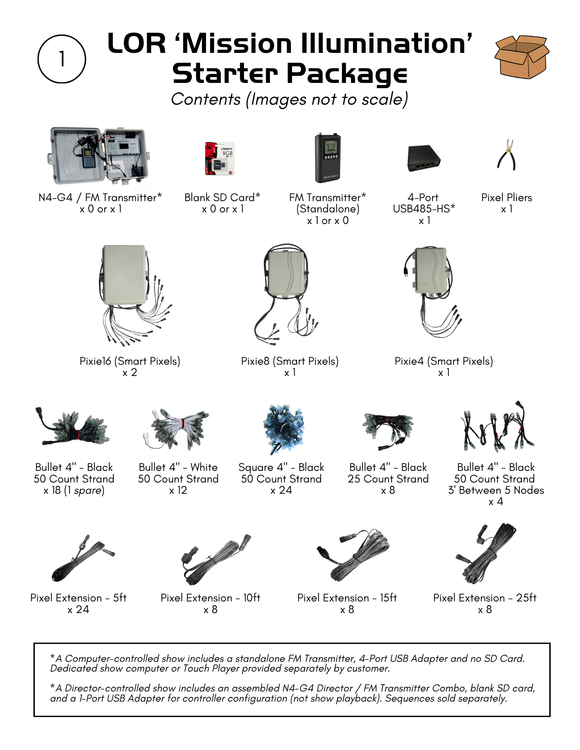

Included in this Package:

Show Control & Essentials

*Type included depends on your selection for show control (1 Port or 4 Port)

Fully Assembled Controllers

  • 2 x Pixie16 Controller - Assembled -12V - With LOR Dangles Included (Black)
    • Mini Trees, Arches, Stakes
    • 16x50 Pixel Tree with Star
  • 1 x Pixie8 Controller - Assembled -12V - With LOR Dangles Included (Black)
    • Snowflakes, Spinners
  • 1 x Pixie4 Controller - Assembled -12V - With LOR Dangles Included (Black)
    • Rooflines OR Windows

Coro Props & Prop Kits ("Pixel Pushing Path" included on the back of all 10mm coro props. Customer pushes pixels for all props.)

  • 8 Mini Trees - 100 Nodes Each. 80 Nodes for Tree and 20 Nodes for Star.
    • 46" high by 17.5" wide
    • 10mm Green Coro with additional Yellow Coro for Star
  • 8 Mini Arches - 25 Nodes Each
    • 2' 11.5" long by 1' 8.75" high. Lighted length 35". Nodes at 2.125" spacing.
    • 10mm Black Coro
  • 40 Pixel Stakes - 5 Nodes Each. Used to create 4 rows of 10 pixel stakes each.
    • 12" tall with 1.5" spacing
    • 10mm Black Coro
  • 4 Coro Snowflakes (2 styles - 2 of each) - 48 Nodes Each.
    • Approx. 24" in diameter
    • 10mm White Coro
  • 4 Coro Spinners - 100 Nodes Each.
    • Approx. 22" in diameter
    • 10mm White Coro with Red Stripes
  • Pixel Mounting Trim - Node Spacing 1" - Usable for four sections of 1", 2", 3" or 4" roofline, OR four windows
    • 130' of UV Stabilized Plastic - 7'9" Sections (White or Black, depending on availability)
  • 16x50 Pixel Tree Mounting Strips (350 feet)
  • Coro Star 32" (50 Node) for 16x50 Tree

Pixels (LOR Connectors)

  • 24 x Black Square Pixels - 50 Ct (4" spacing)
    • 16x50 Pixel Tree (16)
    • Roofline (8) OR Windows (8)
  • 18 x Black Bullet Pixels - 50 Ct (4" spacing)
    • Mini Trees (16)
    • 18" Star (1)
    • Spare (1)
  • 12 x White Bullet Pixels - 50 Ct (4" spacing)
    • Snowflakes (4)
    • Spinners (8)
  • 8 x Black Bullet Pixels - 25 Ct (4" spacing)
    • Mini Arches (8)
  • 4 x Black Bullet Pixels - 50 Ct (5 node sections - 3 feet of spacing between each set of 5 nodes.)
    • Pixel Stakes (4)

Extensions & Cat5 Cables

  • 8 x Extension - Black 25ft
  • 8 x Extension - Black 15ft
  • 8 x Extension - Black 10ft
  • 24 x Extension - Black 5ft
  • 2 x Cat5 Cable - 50ft
  • 2 x Cat5 Cable - 25ft

Not Included

  • Sequences ('Light Shows')
  • Traditional LED Christmas Light Strings / Traditional Props
  • SPT wire / extension cords for LED Christmas Lights
  • Standard extension cords for controller power
  • Mounting material for home attachment
  • Metal stakes or other ground mounting material
  • Frames for Singing Faces

Our CPC packages can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. To customize your prop combinations in your custom sequenced display, visit our collection of Individual CPC Packages.

Package Assembly

Pixels are not pre-pushed for any props in this package. Pixel are to be pushed into coro props and mounting trim by the customer. Instructions for pixel pushing and general network connections will be provided with package delivery.

Mount the props to your home or in your yard using standard ground stakes, zip ties, PVC or other mounting material of your choice.



What can your display look like when starting with CPC packages at the core? Take a look!

Sequences ('Light shows') are NOT included with this package!

Here are your options for sequences:

  1. Create sequences yourself using our software and load them onto the blank SD card
  2. Purchase sequences out of our Sequence Store and load them onto the included blank card in your desired order
  3. Buy a pre-loaded SD card playlist and skip using a computer altogether

The Assembled Pixie16 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell LRS-600-12 - 120/240V input (User Selectable) - 12V - 50A output - with extended temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

The Assembled Pixie8 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell LRS-350-12 - 120/240V input (User Selectable) - 12V - 29A output - with extended temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

The Assembled Pixie4 controller includes the controller board and power supply wired and mounted in a weather-proof, ventilated and UL listed enclosure. The power supply is UL listed: MeanWell LRS-150-12 - 120/240V input (User Selectable) - 12V - 12.5A output - with extended temperature operating range. This is a 12 Volt controller system compatible with 12V RGB smart pixel strands and devices. Dumb RGB devices or standard LED / Incandescent lights cannot be plugged into the ports of this controller.

Purchases outside the United States and Canada are assembled with an internationally approved and UL listed: MeanWell RSP-500-12 - 120/240V input - 12V - 41.7A output - with Power Factor Correction and extended temperature operating range, UL listed: MeanWell RSP-320-12 - 120/240V input - 12V - 26.7A output - with Power Factor Correction and extended temperature operating range, or UL listed: MeanWell RSP-150-12 - 120/240V input - 12V - 12.5A output - with Power Factor Correction and extended temperature operating range.

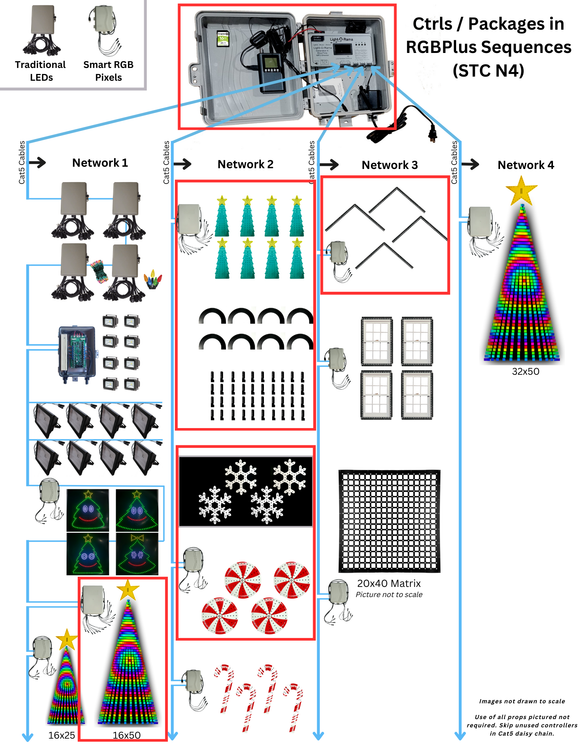

For non-modified use with RGBPlus sequences, the controller in this package must be connected to Networks 1, 2, and 3 following the instructions provided to you upon delivery.

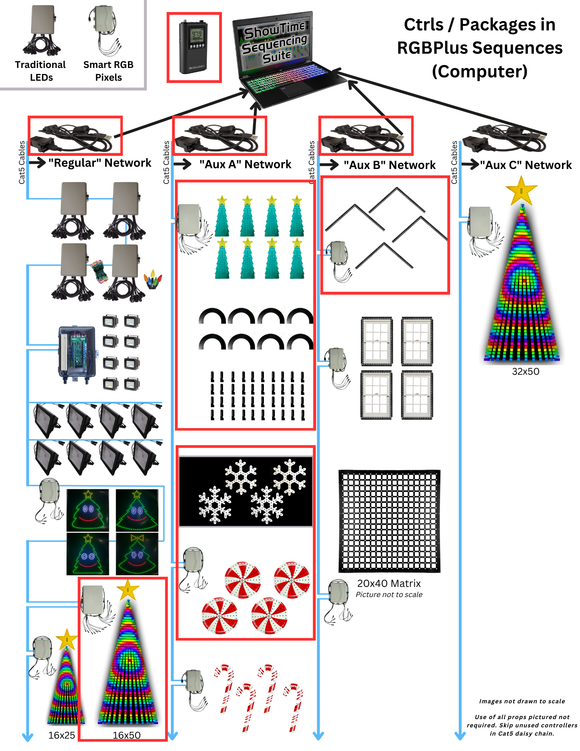

Our "CPC" packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show.

S6.2.0 or higher is recommended for easiest use for personal sequence creation; a Pro license level is required to use Pixel Motion Effects. RGBPlus sequence requirements are listed per purchase page (either 5.6.0+ or 6.2.0+). If you you purchase a pre-loaded SD card, software use is not required.

Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.

View the manual for the Pixie Controller by clicking here.

Learn more about our warranty policy by clicking here.
