Our Prop Packages include the "Coro, Pixels, and Controller" you need to easily add smart pixel props into to your display. These packages can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show. The props in this package must be assigned to specific Unit IDs in order to work with our RGBPlus sequences.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.
Included in this Package:

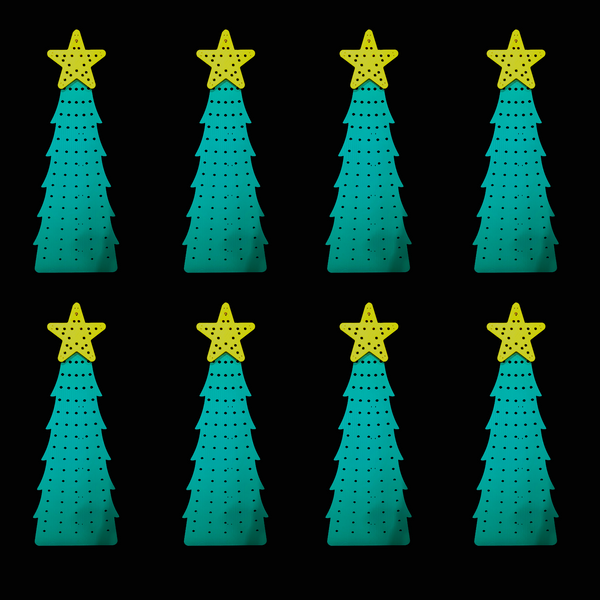

- 8 Mini Trees - 100 Nodes Each. 80 Nodes for Tree and 20 Nodes for Star. "Pixel Path" for pixel pushing included on the back of each prop.
- 46" high by 17.5" wide
- 10mm Green Coro with additional Yellow Coro for Star

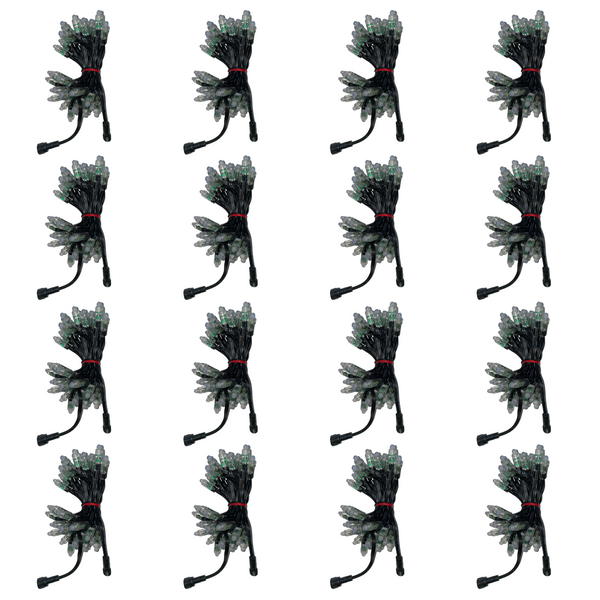

- 16 Strands of Black Bullet Pixels - 50 Ct (4" spacing). Two strands of 50 should be connected together per prop.
- Dangles not included. The controller you use needs dangles installed.
- 8 Pixel Extensions - Black (5ft, 10ft, 15ft, or 25ft)
- Mounting material for home attachment
- Metal stakes or other ground mounting material
Our Prop Packages (No controller) can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. If you're looking for a package with the controller included, consider purchasing a CPC Kit (Coro, Pixels, Controller) instead.

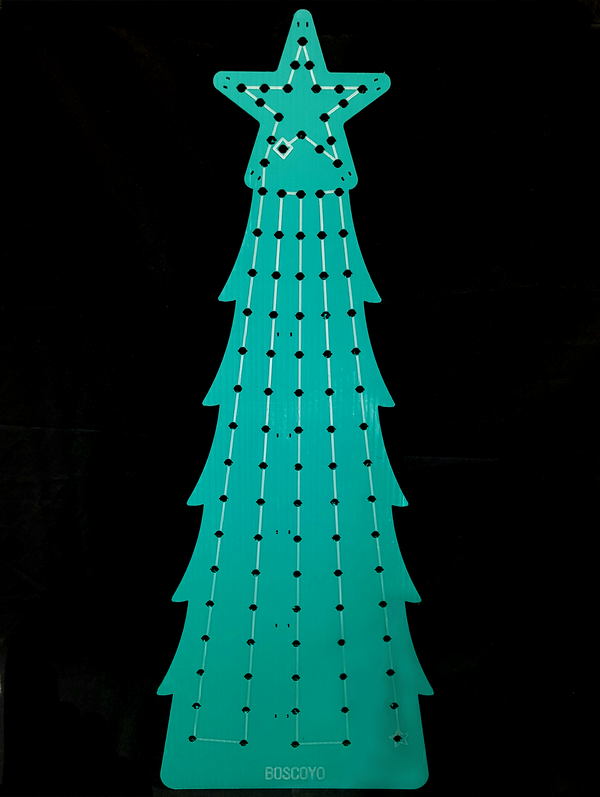

Pixels are not pre-pushed. Assembly is to be completed by the customer. When viewing the Mini Tree from the back, the Pixel Path "star" (for "start") should be at the bottom right of the prop, with the pixel path continuing up and down the tree until it continues into the star and reaches the "square" for "stop."

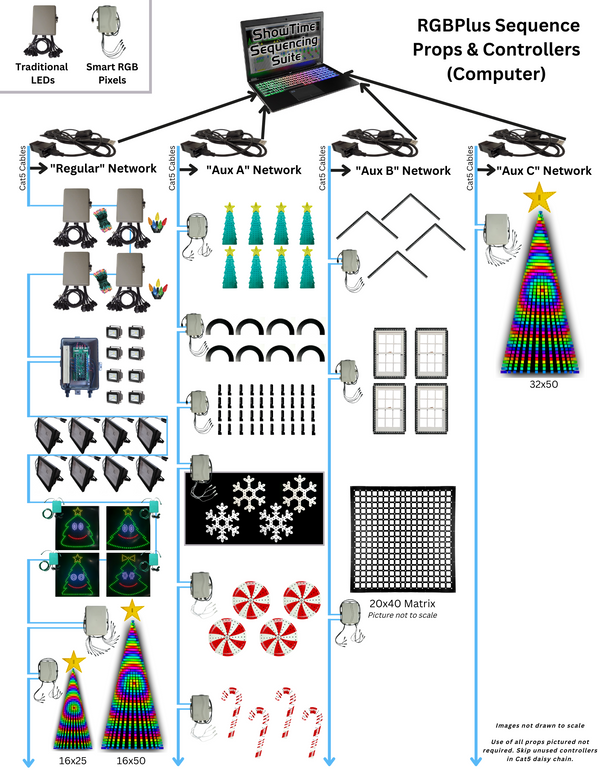

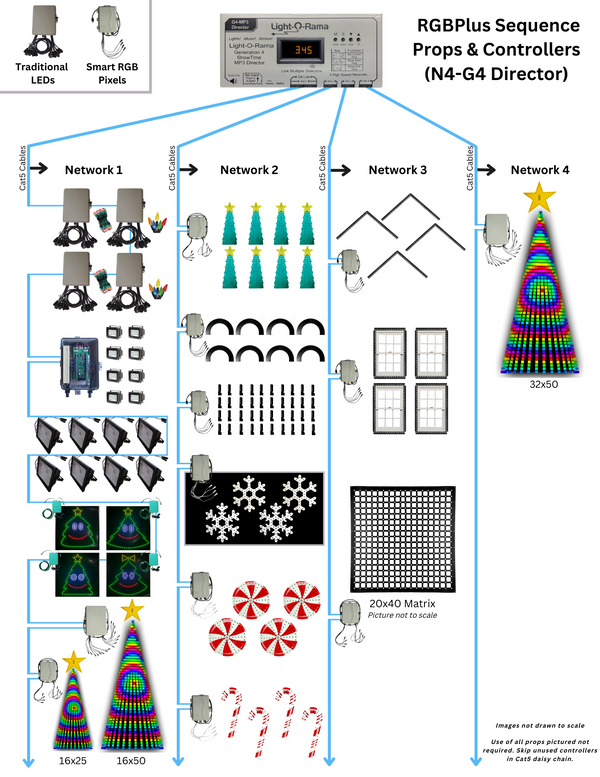

To use this Prop Package with our RGBPlus Sequences (Available October 2022), the Pixie controller you use must be connected to the AuxA network on your computer or Net 2 of your N2-G4 or N4-G4 Showtime Director. You must be using 5.6.8 or higher in order to use RGBPlus Sequences with a computer.
When viewing the mini trees as the audience, the 1st tree should be on the left in a row and the 8th tree should be on the right. When viewing the Mini Tree from the back, the Pixel Path "star" (for "start") should be at the bottom right of the prop, with the pixel path continuing up and down the tree until it continues into the star and reaches the "square" for "stop."
The props in this package must be connected to Unit IDs 09, 0A, 0B, 0C, 0D, 0E, 0F, and 10, both physically on your controller and in your S5 Preview. Learn how to set the Unit ID of your Pixie controller using DIP switches by clicking here.
Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
