CPC Package - Pixel Tree (16x25)

A complete kit that allows you to build your own 6'6" smart pixel tree (or have it shipped to you assembled) for use in your own sequences on any network, or with our sequences on the Regular Network/Network 1 in our RGBPlus and Deluxe Sequences. See included components and pictures in the description.

$579.95 $615.79 Save $35.84

Shipping calculated at checkout

Pixel Wire & Mounting Strip Color: White

Pixel Assembly: Customer Pushes Pixels

Customer Pushes Pixels

Light-O-Rama Pushes Pixels

Current processing/packing time for an order containing this item is 4-7 business days. The item will ship using your chosen shipping method after it is processed.

Description Details Star Topper 18" User Manual Warranty

What can your display look like with our CPC Packages? Take a look!

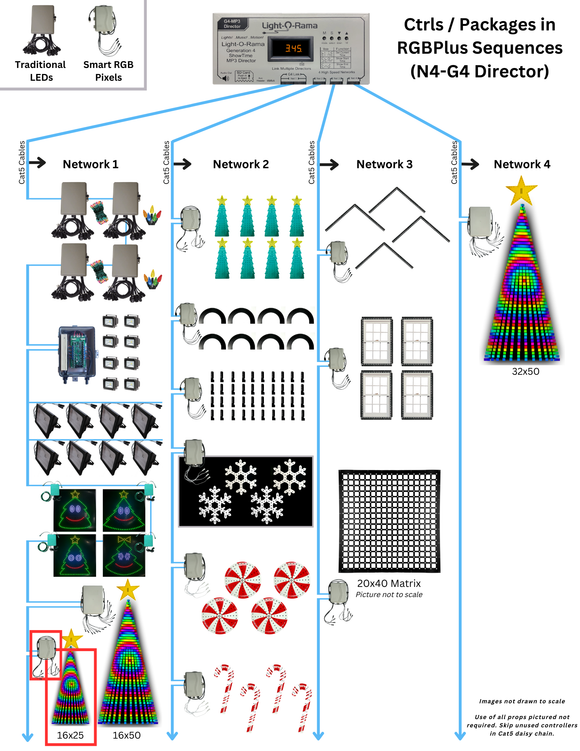

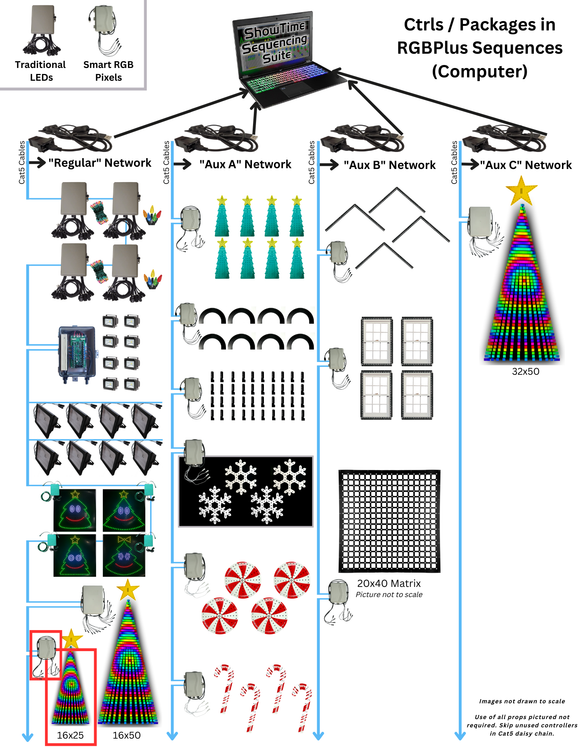

For non-modified use with RGBPlus sequences, the controller in this package must be connected to Network Regular/Network 1. Each network in your show requires a USB485-HS Adapter (computer show) or an available port of a Showtime Director.

This 6'6" pixel tree kit includes an assembled Pixie8 controller with LOR dangles, 400 pixels, mounting strips, and everything else necessary to set up the tree. No extra parts required.

Choose from Black wire and mounting strips or White wire and mounting strips

The pixel tree comes either:

‘Customer Assembled’ - SAVE MONEY. The pixel tree kit will arrive with all of the pieces needed for assembly. Take the raw components, pixel strips, cable ties, etc. and easily assemble the tree on your own - Just follow these simple directions. (Pictures included!)
‘Factory Assembled’ - SAVE TIME. With this option, the tree is shipped to you ready to setup: the pixels are in inserted in the strips and the strips are attached to the topper. You just place the topper on the pole, stake it down, plug it in, and you're ready to go.

This pixel tree can be connected to your existing Light-O-Rama network with a Cat5 line or used as the only prop in your display. Use a computer or a Showtime Director to control your tree!

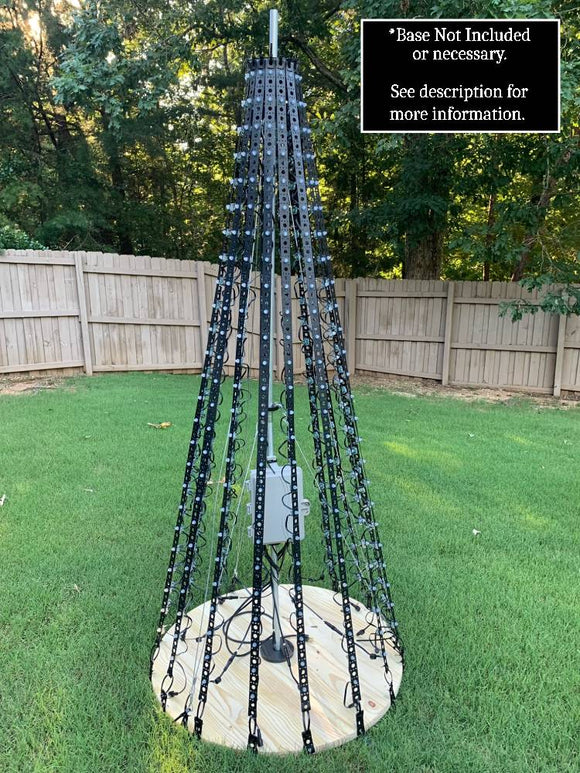

Pixel Tree Picture

Note: Software is not included. The PRO Version of the Light-O-Rama Software Suite is required to use smart pixel "Motion Effects". You must have a high speed USB 485 Adapter to use this tree with a computer.

The Pixie8 controller & UL recognized MeanWell power supply come mounted in a UL list enclosure. The pixels can either come already mounted in the pixel strips ('Factory Assembled') or ready to assemble upon arrival ('Customer Assembled'). The included stake template provides perfect spacing for the 16 strings and 3 support cables. Mount the controller to the pole inside the tree, then use the adjustable straps to get your tree straight and level.

Staked stub straps can remain frozen in the ground until spring allowing for easy takedown regardless of the temperature. If you'd like to build your own tree base (not required for use), check the tabletop section of your local hardware store and ask about a wooden "36 inch Round."

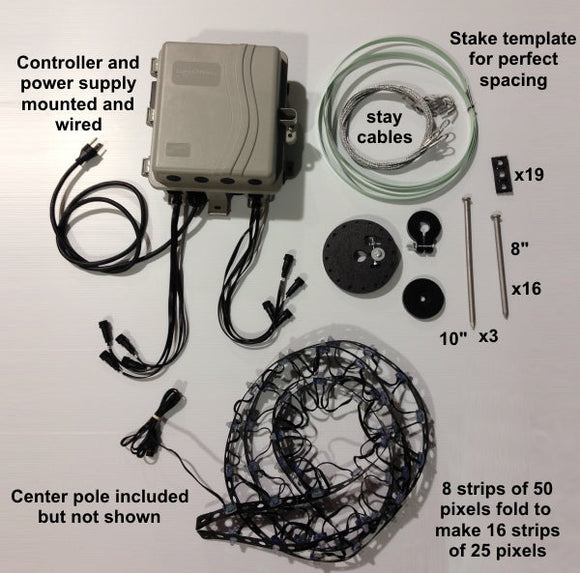

This 6'6" pixel tree kit includes the following parts:

Pixie8 Smart Pixel Controller - Assembled
Pixel Strings (8 strings of 50 pixels) - 400 pixels in total
Plastic Pixel Mounting Strips (16 strips)
Short Guy Cables (3 cables with hooks)
Long Guy Cables ( 3 cables with hooks)
Plastic tree parts ( 1 Topper, 1 Base, 3 Pole Supports)
Assembly Hardware ( 4 Long Screws, 1 Short Screw, 8 Small Washers, 2 Large Washers, 5 Nuts )
Cable Ties ( 25 – 10” Adjustable, 25 – 8” Ties, 75 – 4” Ties )
Short Pipes ( 2 pieces )
Long Pipes ( 2 pieces )
Pipe Connectors ( 3 pieces )
Galvanized Stakes ( 17 – 8” Stakes, 3 – 10” Stakes )
Pixel String Spacing Template ( Includes small screw and nut )

Assembly

When the tree is fully assembled, it can easily be mounted anywhere anywhere in your yard. We include stakes for anchoring each pixel strip in the ground. At the end of the season just remove the stakes, roll up the pixel strips and store everything in a compact space. The manual comes with complete details of exactly what you need to do.

The real trick to this pixel tree are the strips used to mount the pixels. Made of high quality, UV resistant and super strong plastic, they are designed to space the pixels evenly and keep them facing the same direction. Pixel spacing is 3 inches with vacant holes between the pixels to allow wind to easily pass through.

A "Customer Assembled' tree kit takes, on average, three hours to construct from the time you open the box to the time the tree is ready for use (including the time to push the pixels through the strips). Read the instructions ahead of time to get a jump start on construction! (Actual assembly time may vary by customer.)

Read the full assembly instruction document for the 6'6" Pixel Tree by clicking here.

Learn how to configure your 6'6" Pixel Tree in the software by reading this document.

If you have added a star to this 16x25 Pixel Tree Kit (strands end at the BASE) with our RGBPlus Sequences (first available October 2022), connect the pixel strand of the star to Strand #8 of your pixel tree. The Unit ID in the preview editor should be 47 (the ID of the last port on the Pixie8 for the tree), and the starting circuit should be 151.

To use the star with an existing 16x25 Pixel tree, you must change the settings on the pixel tree's Pixie8's to allow 100 pixels per port instead of the default 50 pixels or else your star will not light. http://www.lightorama.com/help/configuring_units.htm

Both the Pixel Tree and star topper should be on the Regular network of your computer or Net 1 of your Mini, N2-G4 or N4-G4 Showtime Director. Star sequencing is included at the RGBPlus Layout level.

DO NOT use more than a 10 foot pixel extension if you are connecting the star to a strand of pixels from a Pixel Tree.

Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
