RGBPlus Networks and Unit IDs

1. Make sure you are using RGBPlus sequences. Traditional and Deluxe Layout sequences don't have effects for 90% of our CPC Packages.

2. Ensure you set the DIP switches to match your directions. Misplaced them? Scroll down on this page for instructions.

3. Each package must connect to the right network. Follow your printed instructions, or scroll down on this page.

• RGBPlus Sequences - Networking Overview - Tutorial Video
• RGBPlus Layout - Assign A Sequence to Your Preview - Video For S5 / Video for S6
• RGBPlus Layout - Reconfigure Default Networks (i.e. Use a Mini Director) - Tutorial Video

• All Layouts include effects for 4 Traditional controllers, 10W floods, and 50W floods.

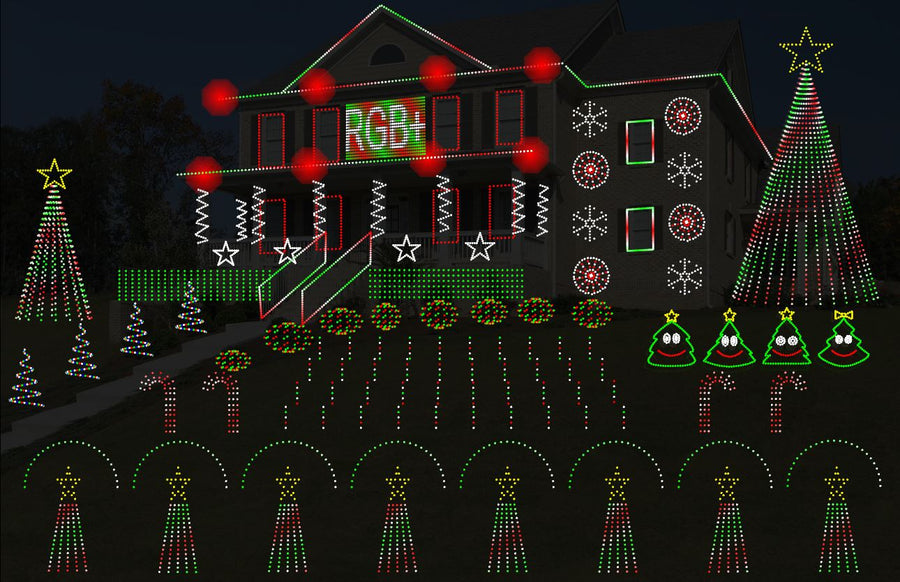

• The RGBPlus Layout additionally includes effects for all CPC Packages.
• The Deluxe Layout only includes smart pixel effects for the CPC 16x25 tree, CPC 16x50 tree, and Singing Faces set to V1 legacy mode.
• The Traditional Layout does not include any CPC Package effects

If you’re using every CPC Package in the default layout, you’ll need an N4-G4 Director or 4 USB485 Adapters (one per network). Watch this video about RGBPlus Networks

If you don’t have every prop, you can use fewer networks and fewer adapters or director ports. A Mini Director or single USB Adapter only supports the smart pixel packages for a 16x25 or 16x50 pixel tree by default. Using other CPC Package props requires network modifications.

No! Just skip any props you don’t own when following the Cat5 path in our diagrams. You can add on new packages in future years.

In 5.6.0 or higher, use the Light-O-Rama Props online menu in the Preview Editor to import CPC Package Props.

• Recommended Maximum Smart Pixels Per Network = 3000.
• This includes unused props remaining on a network during reconfiguration.

When using all or nearly all CPC Packages available, a Pixielink may improve playback quality. This advanced device is requires a computer for playback. Learn more here.

The minimum software level required for RGBPlus Sequences is version S5.6.0 Pro or S6.2.0 Pro, and is listed on each sequence's purchase page.

If you purchase an SD card playlist and do NOT plan on making any changes to the effects or the playback order of the songs, you do not need to purchase a software license.
