Prop packages include the Coro and Pixels you need to easily add smart pixel props into to your display, and use whichever Pixie controller best suits your needs (sold separately). These props can be connected to an existing network of Gen3 Light-O-Rama Controllers, or used on a separate network within the same show. A Cat5 cable is required to connect this controller to existing controllers in a multi-controller network, or a computer/showtime director if it is the only Unit in the show. The props in this package must be assigned to specific Unit IDs in order to work with our RGBPlus sequences.
S5.6.8 or higher is recommended for easiest use; a Pro license level is required to use Pixel Motion Effects.
Included in this Package:

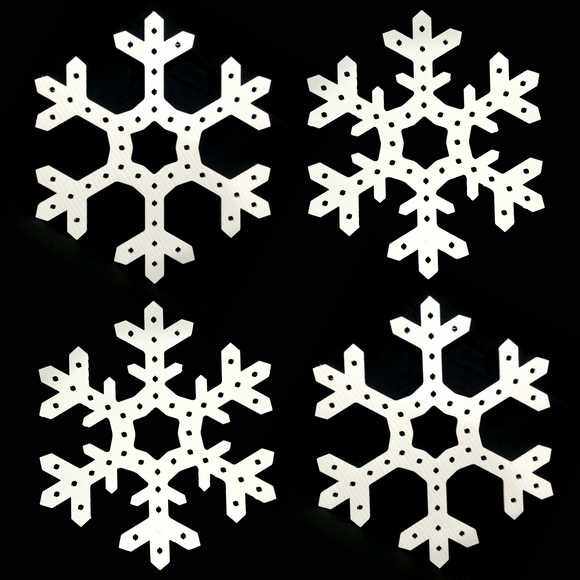

- 4 Coro Snowflakes (2 styles - 2 of each) - 48 Nodes Each. "Pixel Path" for pixel pushing included on the back of each prop.
- Approx. 24" in diameter
- 10mm White Coro

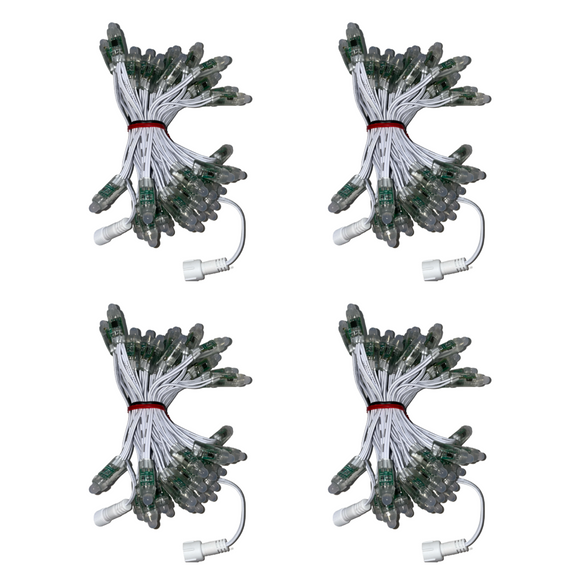

- 4 Strands of White Bullet Pixels - 50 Ct (4" spacing)
- Dangles not included. The controller you use needs dangles installed.
- 4 Pixel Extensions - White (5ft, 10ft, 15ft, or 25ft)
- Mounting material for home attachment
- Metal stakes or other ground mounting material
Our Prop Packages (No controller) can be used in a display with custom sequencing as long as the controller's Unit IDs do not conflict with any other Unit ID assignments on the network, and network limits have not been exceeded. If you're looking for a package with the controller included, consider purchasing a CPC Kit (Coro, Pixels, Controller) instead.

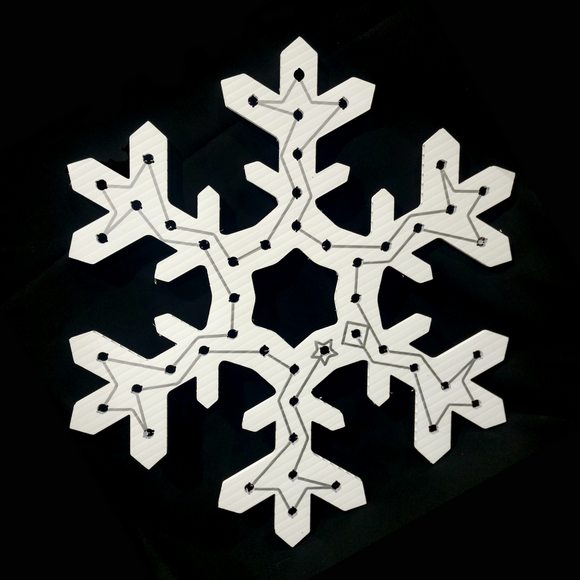

Pixels are not pre-pushed. Assembly is to be completed by the customer. When viewing the snowflake from the back, the arm with the Pixel Path "star" (for "start") should be pointing straight down, with the pixel path continuing in a clockwise fashion until it reaches the "square" (for "stop").

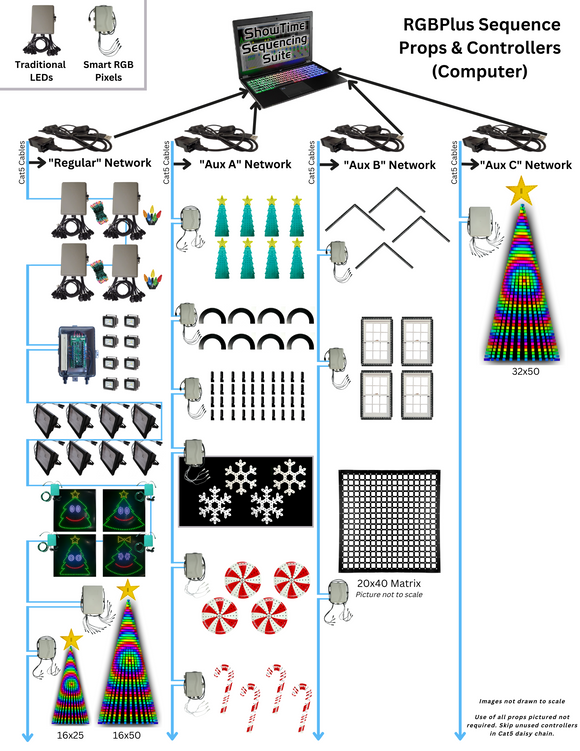

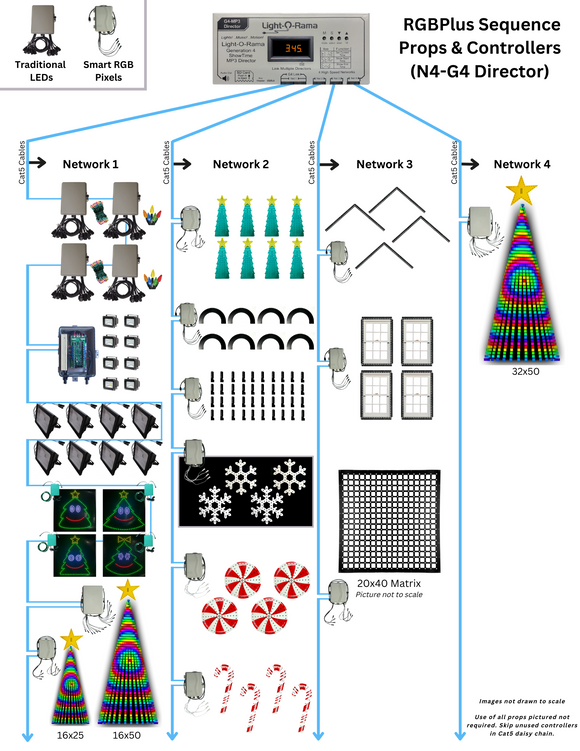

To use this Prop Package with our RGBPlus Sequences (Available October 2022), the Pixie controller you use must be connected to the AuxA network on your computer or Net 2 of your N2-G4 or N4-G4 Showtime Director. You must be using 5.6.8 or higher in order to use RGBPlus Sequences with a computer.
When arranging the four snowflakes, the first snowflake should be on the left of a horizontal row, or the top of a vertical row. When viewing the snowflake from the back, the arm with the Pixel Path "star" (for "start") should be pointing straight down, with the pixel path continuing in a clockwise fashion until it reaches the "square" (for "stop").
The props in this package must be connected to Unit IDs 19, 1A, 1B and 1C, both physically on your Pixie controller and in your S5 Preview. Learn more about setting the Unit ID of your Pixie controller using DIP switches by clicking here.
Learn more about using these props with our RGBPlus Sequences and altering networks/Unit IDs by clicking here.
